Cheap Price clear polycarbonate roller shutter door PC-120

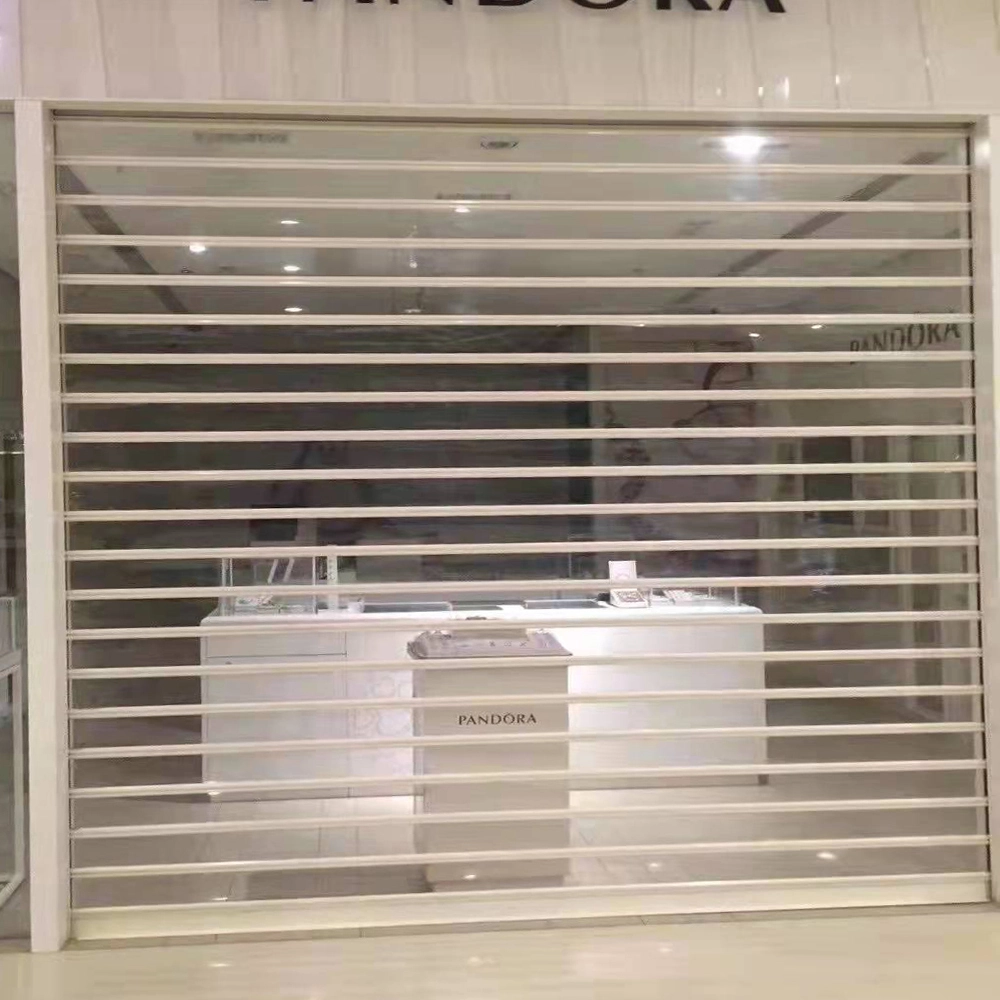

The clear polycarbonate roller shutter door is frequently used in chain and commercial establishments since it can both deter theft and display merchandise around-the-clock.
It is also favoured for its benefits including simple installation, low cost, and little upkeep.
Techniacal Data
By fastening it to a stopping mechanism, it can be utilised to protect people or items underneath a shutter.
| Model number | PC-120. | Color | Transparent |
| Max Width | PC slat and aluminium bar maximum widths are 10 metres. | Weight | 5 KG/sqm |
| Max height | 4 metres for manual, 6 metres for electric | Packaging | Plywood box or cardboard and foam |
| Thickness | 1.2mm/1.5mm/1.8mm/2.0mm | Warranty | 5years |
Features
◆ Transparency: provides 80% UV protection against sunlight and above 90% UV resistance;
◆ Impact resistance: More protective and safe than glass; based on slat thickness, transparency ranges from 80% to 90%;
◆ Heat dissipation: four times as effective as glass at preserving the temperature of the interior space
◆ Vertical V2 and horizontal HB flame retardancy
◆ Eco-friendly: Materials made of polycarbonate can be recycled and adhere to ROHS regulations;
◆ Soundproof: offer sound resistance of 3–4 DB, which is BETTER THAN GLASS;
◆ Lightweight: Polycarbonate drapes have a weight of around 5 kg/m2;
◆ Weather-resistant: performs well in the -40 to 120°C
◆ Temperature range;
◆ Warranty: 5 years warranty
Details
1. Rubber tube: By fastening it to a stopping mechanism, it can be utilised to protect people or items underneath a shutter.
2. White, black or natural aluminium is offered for the bottom bar made of aluminium.
3. The shutter's major part, the polycarbonate slat, is constructed entirely of premium anti-UV PC material.
4. An aluminium bar made of natural aluminium, white aluminium, or black aluminium is also an option.
5. A white plastic end cap compatible with connector bars made of aluminium.
6. The top slat is connected by a single metal component called the top adapter hook.
7. The polycarbonate curtain is attached to the top slat, which is made of galvanised steel.
8. Steel end clip: This device is used to secure the galvanised steel.
9. The top slat is made up of galvanised steel.
10. Guide Rail is made of aluminium and is available in natural aluminium, black, or white. It is shaped like a U.
11. To ensure stillness, fasten the brush strip to the guide rail.
12. A galvanised steel shaft with a three- to ten-foot diameter
The top axle is attached to the left plate, which is made of galvanised steel.
13. The top axle is connected to the motor via the right plate, which is made of galvanised steel.
14. There are two alternatives for the roller shutter motor: tubular motors with a capacity range of 60 N to 300 N and seated motors with a capacity range of 300 kg to 2000 kg.
15. Modify the base
16. Remote control
17. Manual incline
Packing and Transportation
Carton packing or plywood box packing
Sea transport or air transport or express
Item Description
The clear polycarbonate roller shutter door is frequently used in chain and commercial establishments since it can both deter theft and display merchandise around-the-clock.
APPLICATIONS: Supermarkets, chain stores, shopping centres, jewellery stores, coffee shops, nightclubs, etc.
