Cheap Price Transparent Polycarbonate Rolling shutter PC-100 1

Cheap Price Transparent Polycarbonate Rolling shutter PC-100 2

Cheap Price Transparent Polycarbonate Rolling shutter PC-100 3

Cheap Price Transparent Polycarbonate Rolling shutter PC-100 4

Cheap Price Transparent Polycarbonate Rolling shutter PC-100 5

Cheap Price Transparent Polycarbonate Rolling shutter PC-100

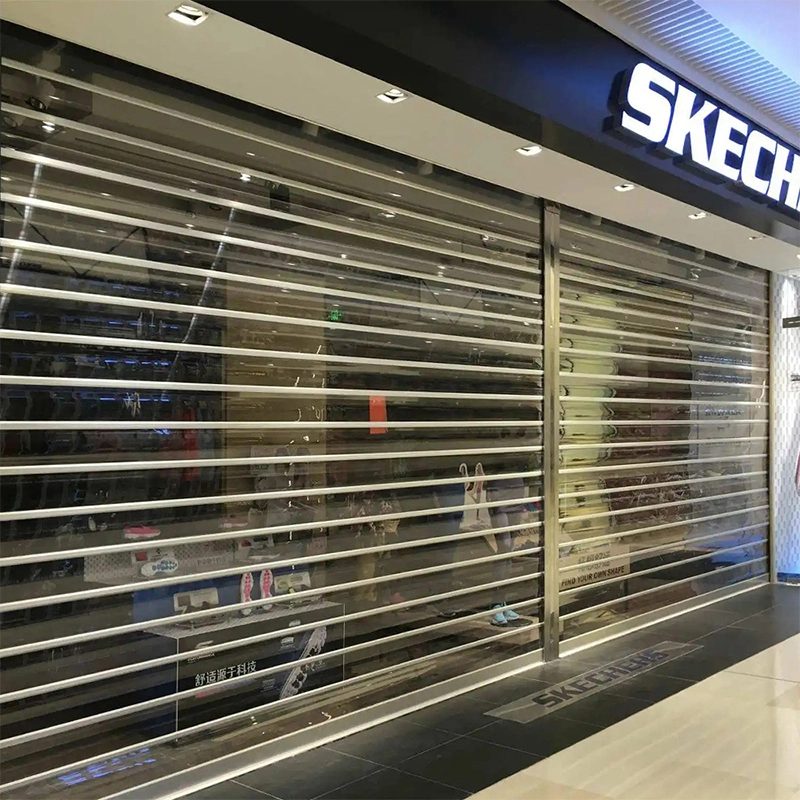

The clear Polycarbonate roll-up doors are frequently used in chain and commercial establishments since they can both deter theft and display merchandise around the clock.

Weight:

5KG/sqm

Thickness:

1.2mm/1.5mm/1.8mm/2.0mm

Color:

Transparent

Max Width:

PC slat, aluminium bar, maximum width 10 metres

Max Height:

Manual 4metres, electric 6meters

Packing:

Cardboard and foam or plywood box

Warranty:

5years

Inquiry

Write a Review

Item Description

The clear Polycarbonate roll-up doors are frequently used in chain and commercial establishments since they can both deter theft and display merchandise around the clock. It is also favoured for its benefits, including simple installation, low cost, and little upkeep.

APPLICATIONS: Grocery shop, shopping mall, supermarkets, chain stores, jewellery store, coffee shop, and nightclub,etc.

Product Details

1.ubber tube: It can be used to safeguard people or objects underneath a shutter by attaching it to a stopping mechanism.

2. Aluminium bottom bar; available in white, black, or natural aluminium.

3. Polycarbonate slat: the shutter's main component, made entirely of high-quality anti-UV PC material.

4. Aluminium bar: constructed of aluminium, available in natural aluminium, white, or black.

5. A white plastic end cap that works with aluminium connector bars

6. The top adapter hook is a single piece of aluminium that connects the top slat.

7. The top slat, which is constructed of galvanised steel, joins the polycarbonate curtain.

8. Steel end clip: It's used to keep the galvanised steel in place.

9. The top slat, which is composed of galvanised steel, connects the top axle.

Detail Parameters

9. Guide Rail: constructed of aluminium in the shape of a U, it is available in natural aluminium, black, or white.
11. Attach the brush strip to the guide rail to maintain quietness.
12. A galvanised steel shaft with a diameter of between three and ten feet
13. Left plate: constructed of galvanised steel, it is used to attach the top axle.
14. The right plate, which is constructed of galvanised steel, is used to attach the top axle to the motor.
15. For the roller shutter motor, there are two options: seated motors with a capacity range of 300 kg to 2000 kg and tubular motors with a capacity range of 60 N to 300 N.
16. Change the bottom
17. Remote management

18. Manual lift chain

Features

Impact resistance: offers better safety and protection than glass; transparency: 80%–90% transparency, depending on slat thickness; Heat dissipation: four times more effective than glass at maintaining the interior space's temperature

Transparency: over 90%

UV resistance: offers 80% UV resistance against sunlight;

• Heat dissipation: four times more effective than glass at maintaining the interior space's temperature
• Flame retardancy: vertical V2 and horizontal HB
• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards;

• Soundproof: provide 3–4 DB sound resistance BETTER THAN GLASS;

• Lightweight: polycarbonate curtains weigh about 5 kg/m2;

• Weather-resistant: functions well in the temperature range of -40 to 120°C;

• Warranty: 5 years warranty
