Shop front transparent rolling shutter door| clear shop roller shutter PC315

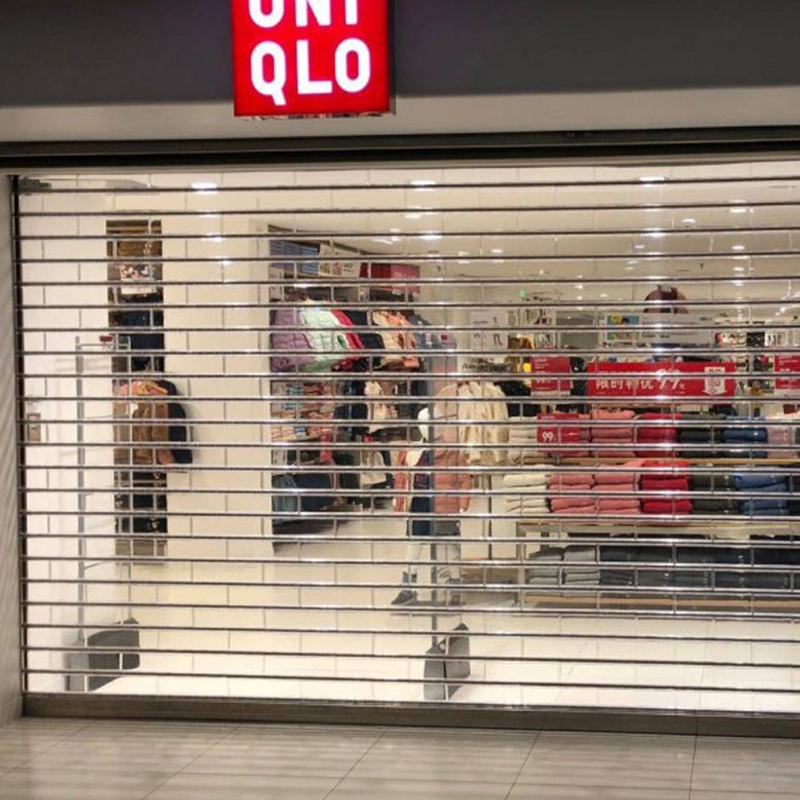

The Commercial establishments and brand stores frequently employ transparent PC polycarbonate roller shutters because they can keep off intruders while displaying merchandise around-the-clock.
It is also favoured for its benefits including simple installation, low cost, and little upkeep.
Item Description
The Commercial establishments and brand stores frequently employ transparent PC polycarbonate roller shutters because they can keep off intruders while displaying merchandise around-the-clock.
It is also favoured for its benefits including simple installation, low cost, and little upkeep.
APPLICATIONS: Supermarkets, chain stores, shopping centers, jewellery stores, coffee shops, and nightclubs,etc.
Product Details
1. Rubber tube: It can be used to safeguard people or objects underneath a shutter by attaching it to a stopping mechanism.
2. Bottom bar: composed of stainless steel or aluminium, with a choice of white or raw metal colour
3. Polycarbonate slat: the shutter's main component, constructed entirely of high-quality PC material.
4. Stainless steel pipe with a diameter of 9.5mm, 12.8mm, or 16mm and constructed of stainless steel 201 or 306
5. A black plastic or rubber end cap with a 9.5mm, 12.8mm, or 16mm diameter
6. Top adapter hook: made of aluminium or polycarbonate, it connects the top slat and is spaced every one metre by three to four pieces.
7. The top slat, which is constructed of galvanized steel, joins the polycarbonate curtain.
8. The steel end clip: It serves to stabilize the top slat, which is made of galvanized steel.
9. The top slat, which is composed of galvanized steel, connects the top axle.
10. U-shaped guide rail constructed of 201 or 304 stainless steel or aluminium
11. Attach the brush strip to the guide rail to maintain quietness.
12. A galvanized steel shaft with a diameter of between three and ten feet
Left plate: constructed of galvanized steel, it is used to attach the top axle.
14. The right plate, which is constructed of galvanized steel, is used to attach the top axle to the motor.
15. Seating roller shutter motors with capacities ranging from 300 KG to 2000 KG are an option. 1. Inside the shaft, two tubular motors with a capacity
16. Switch bottom
17. Remote control
Features
Impact resistance: offers higher safety and protection than glass. Heat dissipation: four times more effective than glass at maintaining the interior space's temperature
• UV resistance: offers 80% UV resistance against sunlight;
• Transparency: over 90% depending on slat thickness;
• Flame retardancy: vertical V2 and horizontal HB
• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards;
• Soundproof: provide 3–4 DB sound resistance BETTER THAN GLASS;
• Lightweight: polycarbonate curtains weigh about 5 kg/m2;
• Weather-resistant: functions well in the temperature range of -40 to 120°C;
• Warranty: 5 years warranty
Packing and transportation
Carton packing or plywood box packing
Sea transport or air transport or express
