Commercial transparent shop front rolling shutter polycarbonate roll up door PC-150

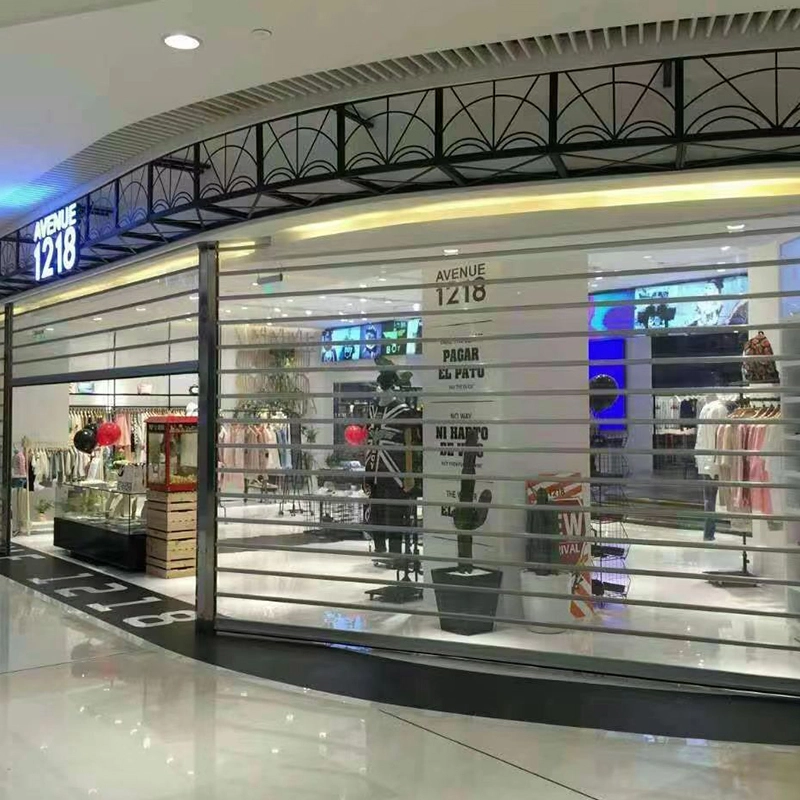

Since it can both prevent theft and constantly exhibit goods, chain and commercial enterprises typically utilise translucent polycarbonate roller shutter doors.
It is also preferred for its features like easy installation, low cost, and minimal maintenance.
Techniacal Data
The polycarbonate slat, which makes up the majority of the shutter, is made fully of better anti-UV PC material.
| Model number | PC-150 | Color | Transparent in colour |
| Max Width | The maximum width for PC slats and aluminium bars is 10 metres. | Weight | 5 kg per square metre |
| Maximum height | 6 metres for electric, 4 metres for manual | Packing | Cardboard and foam or plywood boxes for packaging |
| Thickness | 1.2mm/1.5mm/1.8mm/2.0mm | Warranty | 5years |
Features
◆ Transparency: provides over 90 percent UV resistance and 80% UV protection against sunshine;
◆ Impact resistance: safer and more protective than glass. Transparency ranges from 80% to 90% depending on slat thickness;
◆ Vertical V2 and horizontal HB flame retardancy: four times more efficient than glass for preserving the interior space's temperature
◆ Eco-friendly: Polycarbonate-based components might be recycled and follow ROHS standards;
◆ Offer sound resistance of 3–4 DB, which is BETTER THAN GLASS, making a surface soundproof;
◆ The weight of polycarbonate blinds is around 5 kg/m2, which means they are weather-resistant to function effectively in ranges between -40 and 120 °C.
◆ Five years of warranty
Details
Rubber tube: It can be applied to protect individuals or items underneath a shutter by connecting it to a stop mechanism.
2. The bottom bar made of metal is available in white, black or natural.
3. The polycarbonate slat, which makes up the majority of the shutter, is made fully of better anti-UV PC material.
4. Other options includes an aluminium bar made of natural, white, or black metal.
5. A white plastic end cap suitable with metal connector bars.
6. A single metal component known as the highest adapter hook joins the top slat.
7. The top slat, which is constructed of galvanised steel, is the place where the polycarbonate curtain is attached.
8. Steel end clip: This tool is used to fasten the top slat
9. Top slat: made of galvanized steel, it is used to connect the top axle
10. Guide Rail is made of aluminium and comes in white, black, or natural aluminium. It has a U-shaped form.
11. Attach the brush strip to the guide rail to ensure stillness.
12. A three to ten-foot diameter galvanised steel shaft.
The left plate, which is made of galvanised steel, is where the top axle is fastened.
14. The right plate, which is composed of galvanised steel, links the top axle to the engine.
15. There are two motor options for roller shutters: seated engines, which have a capacity range of 300 kg to 2000 kg, and tubular engines, which have a capacity range of 60 N to 300 N.
16. Change the basis
17. Remote management
A manual incline 18.
Packing and Transportation
Carton packing or plywood box packing
Sea transport or air transport or express
Item Description
Since it can both prevent theft and constantly exhibit goods, chain and commercial enterprises typically utilise translucent polycarbonate roller shutter doors. It is also preferred for its features like easy installation, low cost, and minimal maintenance.
APPLICATIONS: Stores like grocery stores, chain stores, shopping centres, jewellery shops, coffee shops, and nightclubs, among others.
