Latest Sliding Folding Door Price Bulk Production
Product details of the sliding folding door price
Product Introduction
sliding folding door price is well-structured, bringing visual enjoy. Its service life is highly guaranteed by the strict test procedure. The product is popular in the domestic and overseas market with huge economic benefits.
Techniacal Data

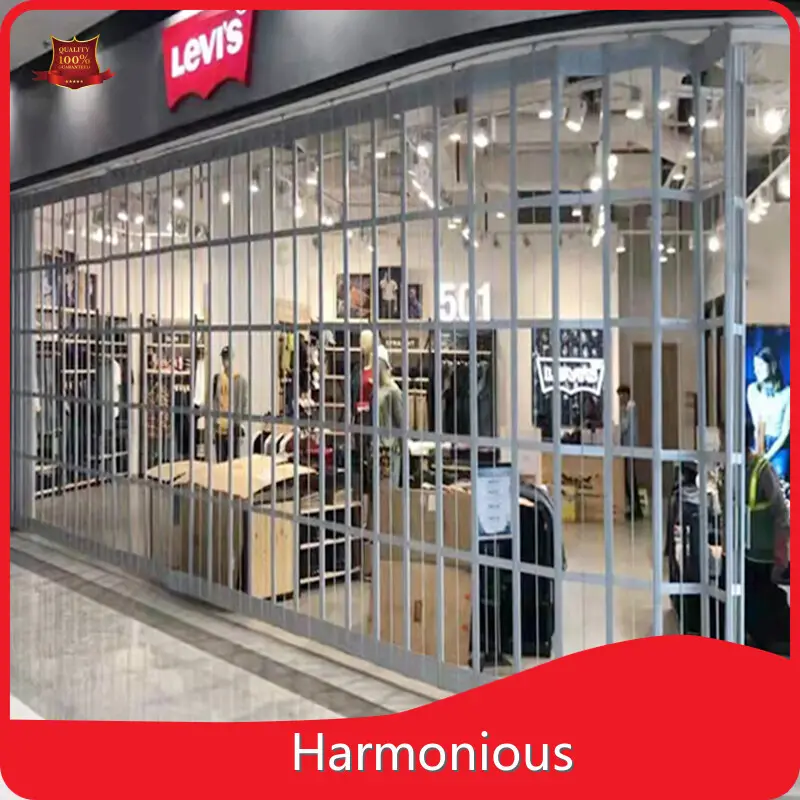

This versatile door is suitable for a variety of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.
| Max width | 35meters | Single panel widths | 11cm, 15cm, 22cm, 26cm, and 29cm |
| Max Height | 4.5 meters when operated manually and 6 meters when operated by a motor | Frame thickness | 10mm |
| Aluminum color | Options available are white, black, and silver | Pocket width | Pocket width is 8% of the total width |
| Panel thickness | 1.6mm polycarbonate 2.2mm aluminum | Operation | Can be done manually or with a motor; can open on one side or be bi-folding |
Description 01
◆ This versatile door is suitable for a variety of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.
Panel options include a range of widths: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, and 300mm.
◆ The grill panel consists of 10mm aluminum rods fixed with a high-quality aluminum frame, ensuring security and airflow. The door can be operated manually or with a motorized system.
◆ The track system consists of a 35mm45mm aluminum track for straight door openings, while a 35mm55mm aluminum track is designed for curve openings. The latter can be easily bent and used for straight openings as well, although it requires pre-formation using a bending machine.
Description 02
◆ The maximum dimensions for the Polycarbonate Folding Sliding Door are a width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation.
◆ Each folding door comes with a set lock and two keys, which can be opened from both sides. Additionally, one set of ground bolts and a dust cover are provided for every 1-meter width of the door.
The aluminum finish is available in powder coating or anodize. The standard colors are natural aluminum, white, and black, but customization is possible based on color samples provided by the customer.
◆ The stacking pocket size is approximately 8% of the total door width, and the specific size will be determined according to your data.
◆ Motor specifications include options for voltage/frequency (single phase 220V/50Hz, three phase 380V/50Hz, or 110V/60Hz), multiple remote controls, and various lifting forces ranging from 300KG to 2000KG. Optional features include a backup battery, alarm system, stopping device, and cellphone control.
Item Description
A 5-year warranty is provided for the folding sliding security grilles. If there are any quality issues that cannot be resolved, we offer product replacements. For shipment and delivery, plywood boxes are used for LCL (less than container load) orders, while foam and carton packaging are used for FCL (full container load) orders.
Company Feature
• Established in has been developing in the for years. We have mastered the advanced technology and have accumulated rich experience.
• Apart from sales in many cities in China, our products are also exported to Southeast Asia, Africa and other foreign countries, and are highly praised by local consumers.
• Our company has formed a complete production and sales service system to provide reasonable services for consumers.
provides excellent products with favorable price in return for new and old customers. We are looking forward to cooperating with you!
