Aluminum sliding folding doors shop security grilles

Description 01

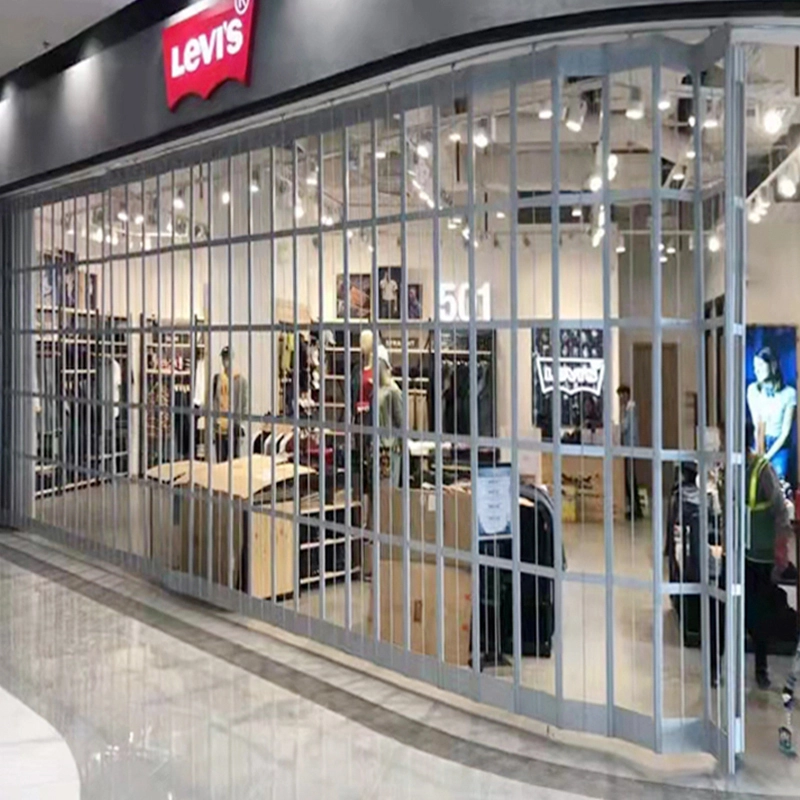

◆    This versatile door is suitable for a variety of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.

Panel options include a range of widths: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, and 300mm.

◆    The grill panel consists of 10mm aluminum rods fixed with a high-quality aluminum frame, ensuring security and airflow. The door can be operated manually or with a motorized system.

◆    The track system consists of a 35mm45mm aluminum track for straight door openings, while a 35mm55mm aluminum track is designed for curve openings. The latter can be easily bent and used for straight openings as well, although it requires pre-formation using a bending machine.

Description 02

◆   The maximum dimensions for the Polycarbonate Folding Sliding Door are a width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation.

◆   Each folding door comes with a set lock and two keys, which can be opened from both sides. Additionally, one set of ground bolts and a dust cover are provided for every 1-meter width of the door.

The aluminum finish is available in powder coating or anodize. The standard colors are natural aluminum, white, and black, but customization is possible based on color samples provided by the customer.

◆   The stacking pocket size is approximately 8% of the total door width, and the specific size will be determined according to your data.

◆   Motor specifications include options for voltage/frequency (single phase 220V/50Hz, three phase 380V/50Hz, or 110V/60Hz), multiple remote controls, and various lifting forces ranging from 300KG to 2000KG. Optional features include a backup battery, alarm system, stopping device, and cellphone control.
