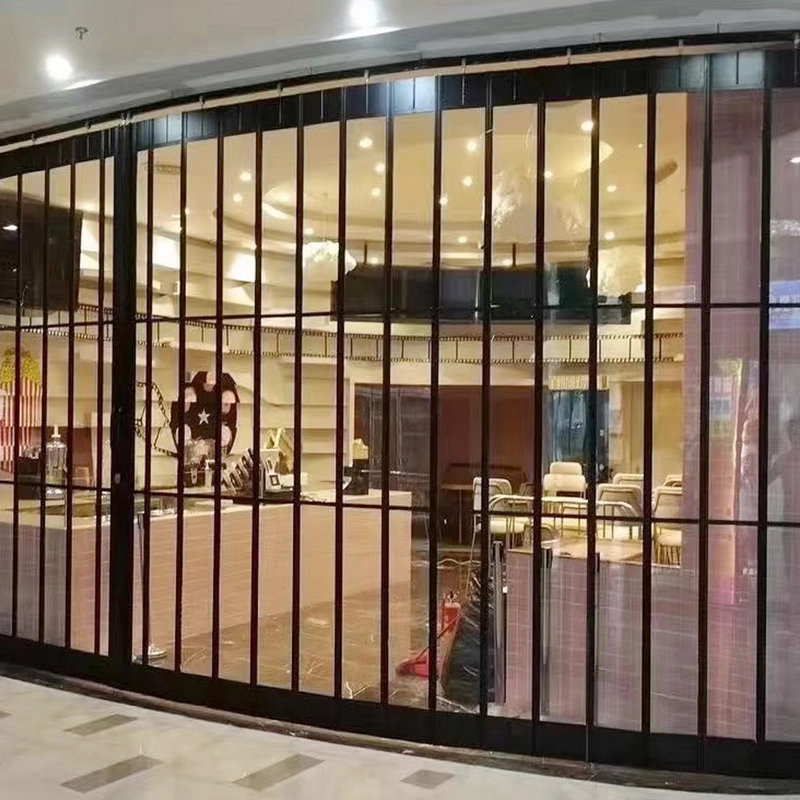

Transparent polycarbonate folding closure | clear sliding folding door wholesale price 1

Transparent polycarbonate folding closure | clear sliding folding door wholesale price 2

Transparent polycarbonate folding closure | clear sliding folding door wholesale price 3

Transparent polycarbonate folding closure | clear sliding folding door wholesale price

The Aluminum Side Folding Grill Door is a highly sought-after choice for commercial centers and shopping malls due to its exceptional blend of security and efficient airflow. Constructed from sturdy aluminum rods and panels, it offers reliable protection for your shop. What's more, the curve rail can be customized to perfectly match various door opening shapes.

Weight:

5KG/sqm

Thickness:

1.2mm/1.5mm/1.8mm/2.0mm

Color:

Transparent

Max Width:

PC slat, aluminium bar, maximum width 10 metres

Max Height:

Manual 4metres, electric 6meters

Packing:

Cardboard and foam or plywood box

Warranty:

5years

Inquiry

Write a Review

Techniacal Data

This versatile door is well-suited for a wide array of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.

Model No.	PC-100	Colour	Transparent
Max width	PC slat, aluminium bar, maximum width 10 metres	Weight	5KG/sqm
Max height	Manual 4metres, electric 6meters	Packing	Cardboard and foam or plywood box
Thickness	1.2mm/1.5mm/1.8mm/2.0mm	Warranty	5years

Description 01

◆ When it comes to panel options, you have a range of widths to choose from, spanning 100mm to 300mm. The grill panel is composed of 10mm aluminum rods firmly secured to a high-quality aluminum frame, ensuring optimal security and airflow. The door can be operated manually or with the convenience of a motorized system.

◆ The track system consists of a 35mm45mm aluminum track for straight door openings, while a specially designed 35mm55mm aluminum track caters to curve openings. Although the latter can be adapted for straight openings, it requires pre-formation using a bending machine.

◆ For the Polycarbonate Folding Sliding Door, the maximum width is 35 meters, while the height reaches 4.5 meters for manual operation or 6.0 meters for motorized operation.

◆ Each folding door is equipped with a lock set and two keys, allowing access from either side. Additionally, a set of ground bolts and a dust cover are provided for every 1-meter width of the door.

Description 02

◆ You have the option to choose from powder coating or anodized finishes for the aluminum. While the standard colors offered are natural aluminum, white, and black, customization is available upon providing color samples.

◆ The stacking pocket size typically occupies around 8% of the total door width and will be precisely determined based on your specific requirements.

◆ Motor specifications encompass various voltage/frequency options, including single phase 220V/50Hz, three phase 380V/50Hz, and 110V/60Hz. Multiple remote controls are included, and the lifting forces range from 300KG to 2000KG. Optional features include a backup battery, alarm system, stopping device, and cellphone control.

◆ We provide a generous 5-year warranty for the folding sliding security grilles. In the unlikely event of unresolved quality issues, we offer product replacements.

◆ For shipment and delivery, LCL orders are securely packed in plywood boxes, while FCL orders are packaged using foam and carton materials.

Item Description

The track system consists of a 35mm45mm aluminum track for straight door openings, while a specially designed 35mm55mm aluminum track caters to curve openings. Although the latter can be adapted for straight openings, it requires pre-formation using a bending machine. For the Polycarbonate Folding Sliding Door, the maximum width is 35 meters, while the height reaches 4.5 meters for manual operation or 6.0 meters for motorized operation.
