Professional manufacturer of roller shutter materials

Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 1
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 2
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 3
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 4
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 1
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 2
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 3
Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services 4

Collapsible Sliding Door 1.5mm~2.0mm Manual 4.5mwith Custom Services

Max Height:
Manual 4.5m, motorized 6m
Aluminum Color:
White, black, silver or custom color
Panel Thickness:
1.5mm~2.0mm
Operation:
Manual or motorized
Inquiry

Product details of the collapsible sliding door


Product Information

In order to be more attractive, our has also established a team with professional design experience in collapsible sliding door industry for years. The quality standards of this product are based on government and industry requirements. tries and keeps our prices as low as possible.

Techniacal Data

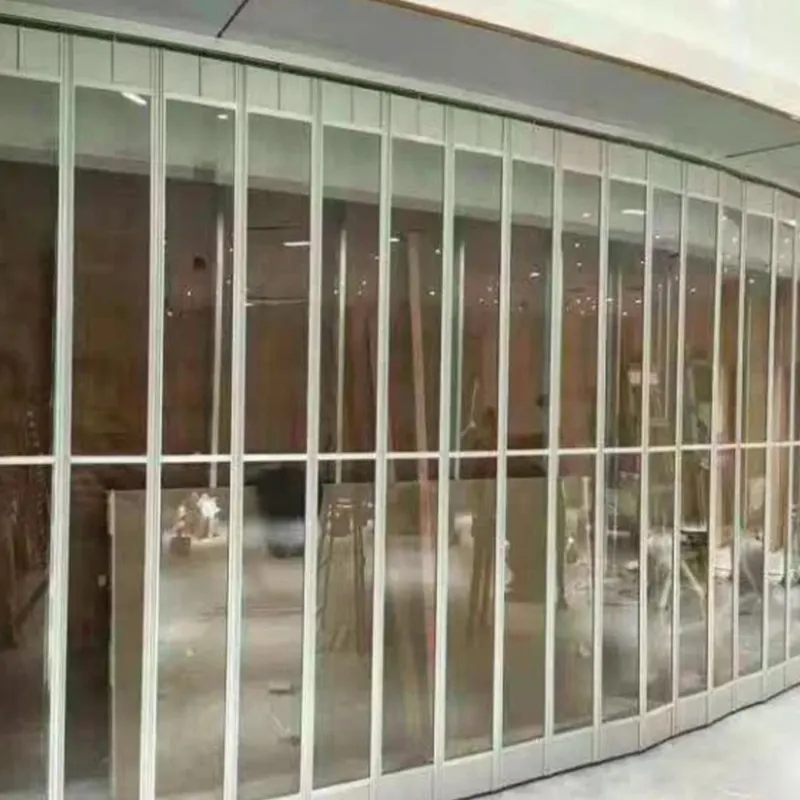

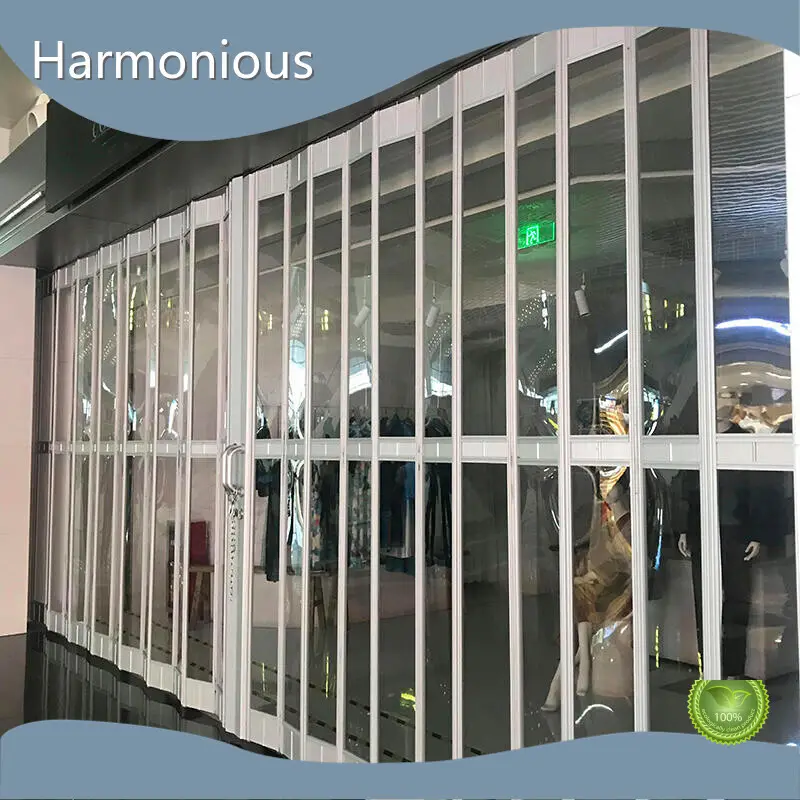

This versatile door finds suitability in a wide range of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.

未标题-4 (4)
Max width 35meters  Panel width 11cm,15cm,22cm, 26.5cm ,29cm
Max Height Manual 4.5m, motorized 6m  PC panel thickness  1.5mm~2.0mm
Aluminum color White, black, silver or custom color  Pocket width 8% of total width
PC color Transparent/white  Operation Manual or motorized
Open direction One side open or bifolding
2 (33)

Description 01

    For panel options, there is a selection of widths available, ranging from 100mm to 300mm. The grill panel consists of 10mm aluminum rods securely fastened to a high-quality aluminum frame, ensuring optimal security and airflow. The door can be operated either manually or with a motorized system.

    The track system comprises a 35mm45mm aluminum track for straight door openings, while a 35mm55mm aluminum track is specifically designed for curve openings. Although the latter can be adapted for straight openings, it necessitates pre-formation using a bending machine.

    The Polycarbonate Folding Sliding Door has a maximum width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation.

    Each folding door is equipped with a lock set and two keys, allowing access from both sides. Additionally, a set of ground bolts and a dust cover are provided for every 1-meter width of the door.

Description 02

◆   The aluminum finish is offered in powder coating or anodized options. While the standard colors include natural aluminum, white, and black, customization is available based on customer-provided color samples.

◆   The stacking pocket size is typically around 8% of the total door width and will be precisely determined based on your specific data.

Motor specifications encompass various voltage/frequency options such as single phase 220V/50Hz, three phase 380V/50Hz, and 110V/60Hz. Multiple remote controls are included, and the lifting forces range from 300KG to 2000KG. Optional features consist of a backup battery, alarm system, stopping device, and cellphone control.

◆   A generous 5-year warranty is provided for the folding sliding security grilles, and in the event of unresolved quality issues, we offer product replacements.

◆   For shipment and delivery, LCL orders are securely packed in plywood boxes, while FCL orders utilize foam and carton packaging.

1 (35)

Item Description

The Polycarbonate Folding Sliding Door has a maximum width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation. Each folding door is equipped with a lock set and two keys, allowing access from both sides. Additionally, a set of ground bolts and a dust cover are provided for every 1-meter width of the door.

未标题-2 (20)


Company Feature

• We always insist on providing customers with good products and sound after-sales service.
• Our company has a perfect sales system. So our products are not only sold well in various provinces, cities and autonomous regions in China, but also exported to different countries and regions overseas.
• There are multiple main traffic lines passing through location. The developed traffic network is conducive to the distribution of br /> • has a professional team of experienced personnel in R&D, management, production, quality inspection, and marketing to promote corporate development.
has been engaged in the production of for many years. With rich production experience, our products are practical and well-designed. Besides, they are of high quality and favorable price. Customers from all walks of life are welcome to consult and place orders!
