Techniacal Data

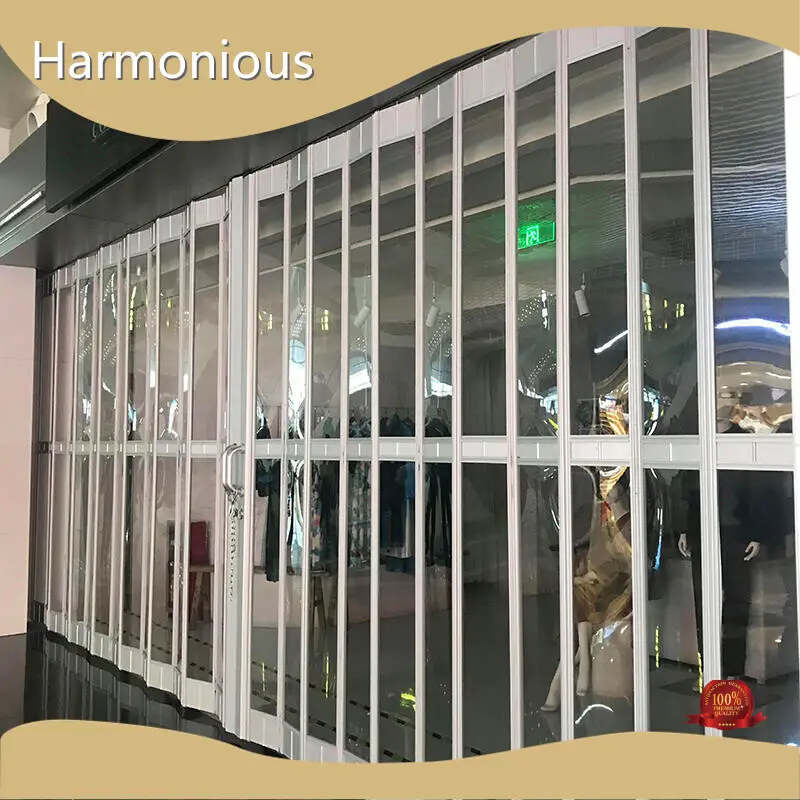

This versatile door finds suitability in a wide range of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.
Max width | 35meters | Panel width | 11cm,15cm,22cm, 26.5cm ,29cm |
Max Height | Manual 4.5m, motorized 6m | PC panel thickness | 1.5mm~2.0mm |
Aluminum color | White, black, silver or custom color | Pocket width | 8% of total width |
PC color | Transparent/white | Operation | Manual or motorized |
Open direction | One side open or bifolding |
Description 01
◆ For panel options, there is a selection of widths available, ranging from 100mm to 300mm. The grill panel consists of 10mm aluminum rods securely fastened to a high-quality aluminum frame, ensuring optimal security and airflow. The door can be operated either manually or with a motorized system.
◆ The track system comprises a 35mm45mm aluminum track for straight door openings, while a 35mm55mm aluminum track is specifically designed for curve openings. Although the latter can be adapted for straight openings, it necessitates pre-formation using a bending machine.
◆ The Polycarbonate Folding Sliding Door has a maximum width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation.
◆ Each folding door is equipped with a lock set and two keys, allowing access from both sides. Additionally, a set of ground bolts and a dust cover are provided for every 1-meter width of the door.
Description 02
◆ The aluminum finish is offered in powder coating or anodized options. While the standard colors include natural aluminum, white, and black, customization is available based on customer-provided color samples.
◆ The stacking pocket size is typically around 8% of the total door width and will be precisely determined based on your specific data.
Motor specifications encompass various voltage/frequency options such as single phase 220V/50Hz, three phase 380V/50Hz, and 110V/60Hz. Multiple remote controls are included, and the lifting forces range from 300KG to 2000KG. Optional features consist of a backup battery, alarm system, stopping device, and cellphone control.
◆ A generous 5-year warranty is provided for the folding sliding security grilles, and in the event of unresolved quality issues, we offer product replacements.
◆ For shipment and delivery, LCL orders are securely packed in plywood boxes, while FCL orders utilize foam and carton packaging.
Item Description
The Polycarbonate Folding Sliding Door has a maximum width of 35 meters and a height of 4.5 meters for manual operation or 6.0 meters for motorized operation. Each folding door is equipped with a lock set and two keys, allowing access from both sides. Additionally, a set of ground bolts and a dust cover are provided for every 1-meter width of the door.
Company Advantages
· concertina sliding doors is designed and developed in accordance with industry norms and standards.
· The superior performance of the product is crowd-pleasing in the market.
· To be a more developed company, has been trying to extend its sales network.
Company Features
· In terms of concertina sliding doors, ranks first among strong manufacturers.
· Modern production equipment can fully guarantee the quality of concertina sliding doors.
· It proves to be necessary to use cultural power to activate productivity of Get price!
Application of the Product
The concertina sliding doors developed by our company can play a role in various fields.
has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
