Transparent shop front folding closure | side folding sliding shutters china factory

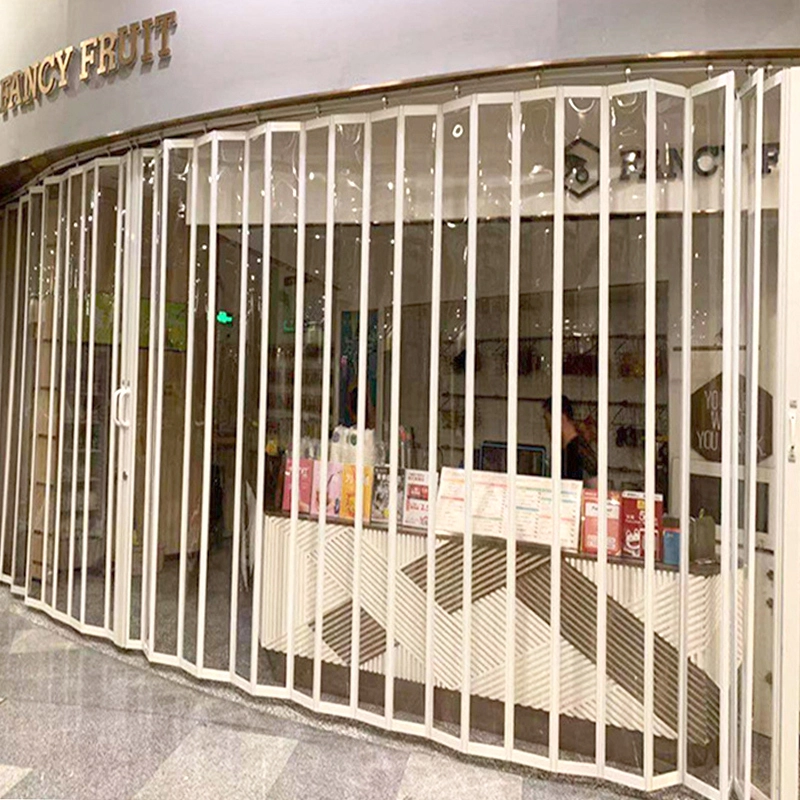

The Transparent Folding Closure is a widely used solution in commercial centers and shopping malls. The new model, known as the Full Vision Folding Door, features reduced aluminum framing compared to traditional designs, providing customers with an enhanced view and offering more panel width options.
Techniacal Data
This versatile door finds applications in various settings, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, brand chain stores, and car beauty shops.
| Max width | 35meters | Single Panel width | 100mm~300mm |
| Max Height | Manual 4.5m, motorized 6m | PC panel thickness | 1.5mm~2.0mm |
| Aluminum color | White, black | Pocket width | 8% of total width |
| PC color | Transparent/white | Operation | Manual or motorized |
| Open direction | One side open or bifolding |
Description 01
◆ The Transparent Folding Closure is a widely used solution in commercial centers and shopping malls. The new model, known as the Full Vision Folding Door, features reduced aluminum framing compared to traditional designs, providing customers with an enhanced view and offering more panel width options.
◆ This versatile door finds applications in various settings, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, brand chain stores, and car beauty shops.
◆ Panel options include a range of widths, starting from 100mm up to 300mm. The door offers multiple panel choices to suit different needs: 1.5~2.0mm polycarbonate panels fixed with aluminum frames for burglary-proofing, perforated aluminum panels with round or hexagon holes, and grill panels consisting of 10mm aluminum rods fixed with aluminum frames, providing both burglary-proofing functionality and an 80% view. The door can be operated manually or with a motorized system.
Description 02
◆ The track system features a 25mm35mm aluminum track for straight door openings, which can also be used for curve openings with pre-formation using a bending machine. Additionally, a 25mm30mm aluminum track is specifically designed for curve openings and can be easily bent for straight openings as well.
◆ The Polycarbonate Folding Sliding Door has a maximum width of 35 meters, while the height reaches 4.5 meters for manual operation or 6.0 meters for motorized operation.
◆ Each folding door is equipped with a lock set and two keys, enabling access from both sides. Furthermore, one set of ground bolts and a dust cover are provided for every 1-meter width of the door.
◆ The aluminum finish is available in powder coating or anodized options. The standard colors offered are natural aluminum, white, and black, but customization is possible upon providing color samples.
◆ The stacking pocket size typically amounts to approximately 8% of the total door width, with precise measurements determined based on the provided data.
Item Description
Motor specifications include various voltage/frequency options, such as single phase 220V/50Hz, three phase 380V/50Hz, and 110V/60Hz. Multiple remote controls are included, and lifting forces range from 300KG to 2000KG. Optional features comprise a backup battery, alarm system, stopping device, and cellphone control.
We offer a generous 5-year warranty for the Full Vision Shop Security Folding Door, and in case of any damaged panels during transport, we are able to replace them.
For shipment and delivery, LCL orders are packed securely in plywood boxes, while FCL orders utilize foam and carton packaging.
