Professional manufacturer of roller shutter materials

Sliding Folding Brand Latest Design 1
Sliding Folding Brand Latest Design 2
Sliding Folding Brand Latest Design 3
Sliding Folding Brand Latest Design 1
Sliding Folding Brand Latest Design 2
Sliding Folding Brand Latest Design 3

Sliding Folding Brand Latest Design

Max Width:
35meters
Panel Thickness:
2.2mm
Open Direction:
One side open or bi-folding
Inquiry
Send your inquiry

Product details of the sliding folding


Product Overview

sliding folding is offered with the help of talented team of craftsmen. A series of strict pre-delivery testing is carried out to eliminate the defect product. The testing is strictly conducted by our testing personnel and thus the quality of this product can be guaranteed. In a couple of years, the brand has spread out and won a high degree of recognition and reputation among overseas customers.


Product Description

The quality of sliding folding is better than the quality of its peer products. It is shown in the following aspects.

Item Description

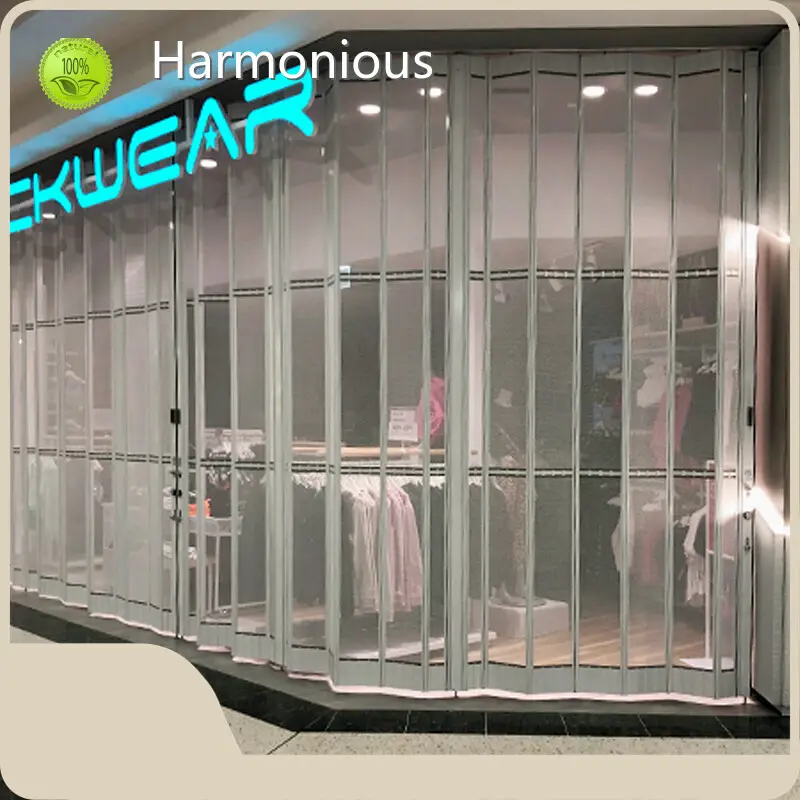

The Aluminum Perforated Folding grilles is widely used in commercial centers and shopping malls, this door isassembled with aluminum perforated panel, which can provide security for your shop and adequate airflow, bycustomizing the curve rail, it can be compatible to any shape of door openings.

APPLICATIONS:   Supermarket, shopping mall, jewelry shop, coffee shop, club bar, brand chain stores

fg6_waifu2x_photo_noise2_scale
2 (14)

Product Details

   Panel Options1. Single panel width: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, 300mm2. Grill panel: 10mm aluminum rod fixed with high quality aluminum frame to provide security and airflowOperation: manual operation or motorized operation

   Track System1. 35mm*45mm aluminum track for straight door opening, it can also be used for curve opening but needpre-formation by bending machine2. 35mm*55mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.

   Maximum sizeMaximum width of Polycarbonate Folding Sliding Door is 35meterMaximum height is 4.5meter for manual operation door

Maximum height is 6.0meter for motorized operation door

Detail Parameters

   Lock And Bolts1. Each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.2. Gound bolts and dust cover will be provided 1set every 1meter width.

   Aluminum ColorThe finish of aluminum is powder coating or anodize.  the normal color is natural aluminum, white and black. If you need other color, please send color samples, and we will customize color for you

   Stacking Pocket SizeThe pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to your data.

   Motor Specification1. Motor Voltage / Frequency: single phase 220V/50Hz, three phase 2. 380V/50Hz, 110V/60Hz is also available

2. Motor remote controls: 2pcs or more3. Motor lifting Force: 300KG, 600KG, 800KG, 1000KG, 1500KG, 2000KG4. Optional: backup battery, alarm system, stopping device, cellphone control

3 (9)

Packaging And Transportation

We have more folding sliding door models, clear vision shopping mall accordion door, full vision commercial accordion door, Side folding Grill Door, clear view shop accordion door, transparent store front accordion door, shopping mall folding closure, transparent shop accordion folding doors etc.

未标题-4 (2)

Similar Products

We have more folding sliding door models, clear vision shopping mall accordion door, full vision commercial accordion door, Side folding Grill Door, clear view shop accordion door, transparent store front accordion door, shopping mall folding closure, transparent shop accordion folding doors, store front side folding closure, shop folding sliding security grilles, if you need more options, please check our other products.

WARRANTY: 5 years warranty for folding sliding security grilles we can replace the damaged panel during transport

Shipment and Delivery: Plywood box packing for LCL, foam and carton packing for FCL


Company Introduction

Located in is a comprehensive modern enterprise. We are mainly engaged in the R&D, production, processing and sales of Being customer-oriented, our company is devoted to creating a convenient, high-quality, and professional service model. It makes contribution for us to provide consumers with a high level of service. If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
