Professional manufacturer of roller shutter materials

Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 1
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 2
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 3
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 4
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 5
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 1
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 2
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 3
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 4
Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy 5

Polycarbonate Roll Up Door 5KG/sqm PC Slathigh Qualtiy

Weight:
5KG/sqm
Color:
Transparent
Max Width:
PC slat, aluminium bar, maximum width 10 metres
Packing:
Cardboard and foam or plywood box
Inquiry
Send your inquiry

Product details of the polycarbonate roll up door


Product Overview

polycarbonate roll up door is finely manufactured thanks to the applications of advanced technology and lean production system. In order to ensure its compliance with industry set quality norms, the product has to be examined by our quality experts before delivery. polycarbonate roll up door can play an important role in various fields. Due to the dedicated and sincere efforts of our staff, we have established as a trustworthy organization in the market.


Product Information

polycarbonate roll up door has the following differentiated advantages compared with other products in the same category.

Item Description

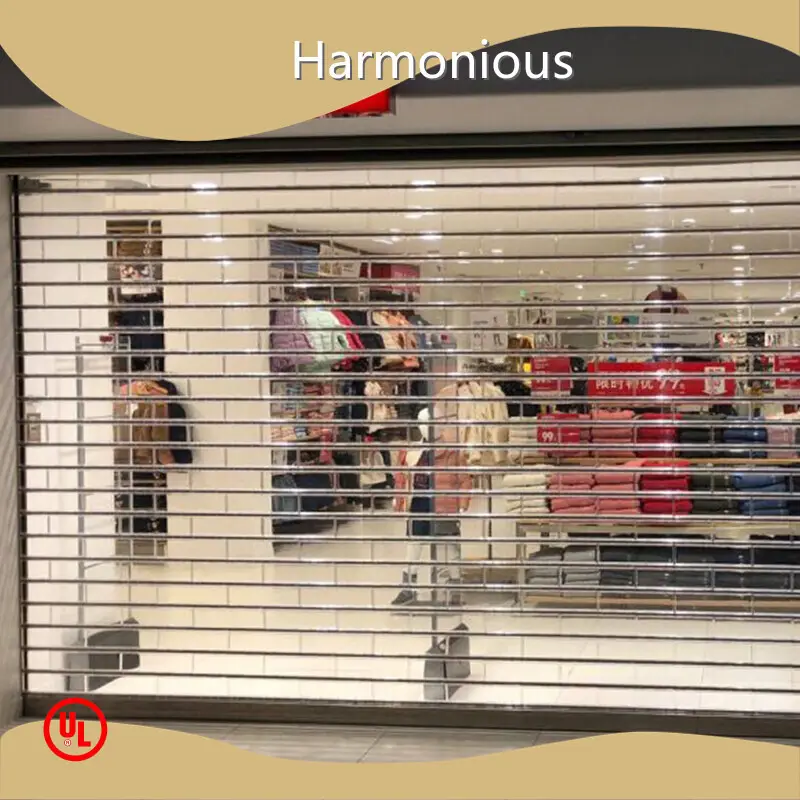

The Commercial establishments and brand stores frequently employ transparent PC polycarbonate roller shutters because they can keep off intruders while displaying merchandise around-the-clock.

It is also favoured for its benefits including simple installation, low cost, and little upkeep.

APPLICATIONS:   Supermarkets, chain stores, shopping centers, jewellery stores, coffee shops, and nightclubs,etc.

未标题-2 (3)
未标题-1

Product Details

1. Rubber tube: It can be used to safeguard people or objects underneath a shutter by attaching it to a stopping mechanism.

2. Bottom bar: composed of stainless steel or aluminium, with a choice of white or raw metal colour

3. Polycarbonate slat: the shutter's main component, constructed entirely of high-quality PC material.

4. Stainless steel pipe with a diameter of 9.5mm, 12.8mm, or 16mm and constructed of stainless steel 201 or 306

5. A black plastic or rubber end cap with a 9.5mm, 12.8mm, or 16mm diameter

6. Top adapter hook: made of aluminium or polycarbonate, it connects the top slat and is spaced every one metre by three to four pieces.

7. The top slat, which is constructed of galvanized steel, joins the polycarbonate curtain.

8. The steel end clip: It serves to stabilize the top slat, which is made of galvanized steel.


9. The top slat, which is composed of galvanized steel, connects the top axle.

10. U-shaped guide rail constructed of 201 or 304 stainless steel or aluminium11. Attach the brush strip to the guide rail to maintain quietness.12. A galvanized steel shaft with a diameter of between three and ten feetLeft plate: constructed of galvanized steel, it is used to attach the top axle.14. The right plate, which is constructed of galvanized steel, is used to attach the top axle to the motor.15. Seating roller shutter motors with capacities ranging from 300 KG to 2000 KG are an option. 1. Inside the shaft, two tubular motors with a capacity

16. Switch bottom

17. Remote control

4 (9)

Features

Impact resistance: offers higher safety and protection than glass. Heat dissipation: four times more effective than glass at maintaining the interior space's temperature

roll3-600x600_waifu2x_photo_noise2_scale

• UV resistance: offers 80% UV resistance against sunlight;

• Transparency: over 90% depending on slat thickness;

• Flame retardancy: vertical V2 and horizontal HB• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards;

• Soundproof: provide 3–4 DB sound resistance BETTER THAN GLASS;

• Lightweight: polycarbonate curtains weigh about 5 kg/m2;

• Weather-resistant: functions well in the temperature range of -40 to 120°C;

• Warranty: 5 years warranty

Packing and transportation

Carton packing or plywood box packing

Sea transport or air transport or express


Company Advantages

Located in is a modern enterprise. We are engaged in scientific research, production and processing, sales and service. We have as main products. Our company is always standing on the customer's side. We try our best to meet customer needs, and wholeheartedly provides customers with quality products and caring services. Welcome everyone to come for consultation.
