On Sale Polycarbonate Roller Shutter Price - 5 KG/sqm

Weight:
5 KG/sqm
Thickness:
1.2mm/1.5mm/1.8mm/2.0mm
Color:
Transparent
Max Height:
4 metres for manual, 6 metres for electric
Inquiry

Product details of the polycarbonate roller shutter price


Quick Overview

While producing polycarbonate roller shutter price, the quality of materials are taken into seriously. To save the energy, puts the eco-friendly materials into use during the production. polycarbonate roller shutter price can meet the different needs of customers. The offered product has attained exceptional values from customers in the industry.


Product Description

produces polycarbonate roller shutter price according to national standards, and the products are of good quality. The specific details are as follows.

Techniacal Data

By fastening it to a stopping mechanism, it can be utilised to protect people or items underneath a shutter.

Model number  PC-120. Color Transparent
Max Width PC slat and aluminium bar maximum widths are 10 metres. Weight 5 KG/sqm
Max height  4 metres for manual, 6 metres for electric Packaging  Plywood box or cardboard and foam
Thickness 1.2mm/1.5mm/1.8mm/2.0mm Warranty 5years
ad

Features

    Transparency: provides 80% UV protection against sunlight and above 90% UV resistance;

    Impact resistance: More protective and safe than glass; based on slat thickness, transparency ranges from 80% to 90%;

    Heat dissipation: four times as effective as glass at preserving the temperature of the interior space

    Vertical V2 and horizontal HB flame retardancy

    Eco-friendly: Materials made of polycarbonate can be recycled and adhere to ROHS regulations;

    Soundproof: offer sound resistance of 3–4 DB, which is BETTER THAN GLASS;

    Lightweight: Polycarbonate drapes have a weight of around 5 kg/m2;

    Weather-resistant: performs well in the -40 to 120°C

    Temperature range;

    Warranty: 5 years warranty

Details

1. Rubber tube: By fastening it to a stopping mechanism, it can be utilised to protect people or items underneath a shutter.

2. White, black or natural aluminium is offered for the bottom bar made of aluminium.

3. The shutter's major part, the polycarbonate slat, is constructed entirely of premium anti-UV PC material.

4. An aluminium bar made of natural aluminium, white aluminium, or black aluminium is also an option.

5. A white plastic end cap compatible with connector bars made of aluminium.

6. The top slat is connected by a single metal component called the top adapter hook.

7. The polycarbonate curtain is attached to the top slat, which is made of galvanised steel.

8. Steel end clip: This device is used to secure the galvanised steel.

未标题-1 (2)
123

9. The top slat is made up of galvanised steel.

10. Guide Rail is made of aluminium and is available in natural aluminium, black, or white. It is shaped like a U.

11. To ensure stillness, fasten the brush strip to the guide rail.

12. A galvanised steel shaft with a three- to ten-foot diameter

The top axle is attached to the left plate, which is made of galvanised steel.

13. The top axle is connected to the motor via the right plate, which is made of galvanised steel.

14. There are two alternatives for the roller shutter motor: tubular motors with a capacity range of 60 N to 300 N and seated motors with a capacity range of 300 kg to 2000 kg.

15. Modify the base

16. Remote control

17. Manual incline

Packing and Transportation

Carton packing or plywood box packing

Sea transport or air transport or express

Item Description

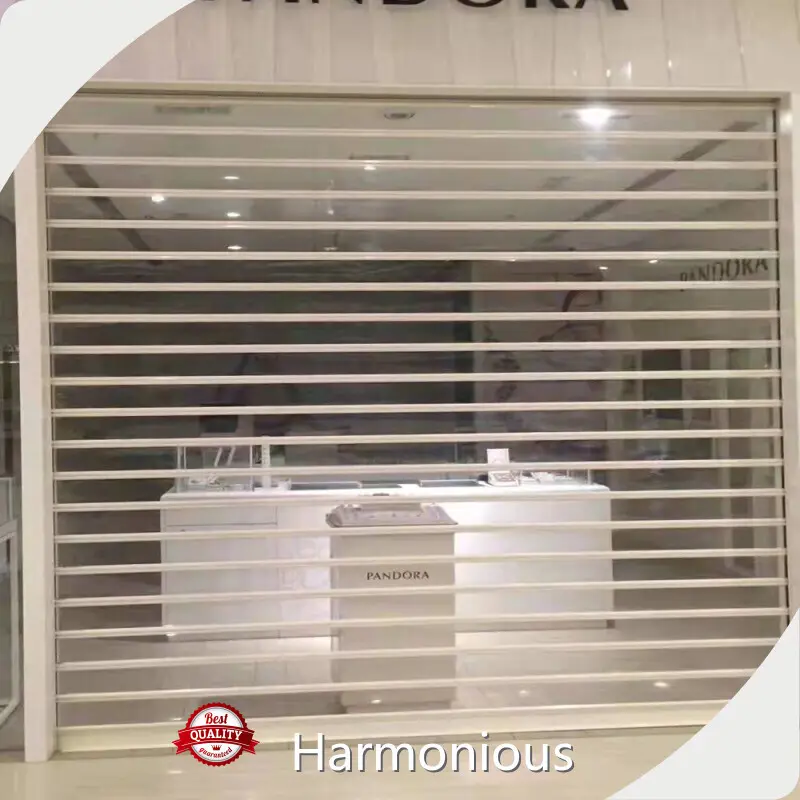

The clear polycarbonate roller shutter door is frequently used in chain and commercial establishments since it can both deter theft and display merchandise around-the-clock.

APPLICATIONS:   Supermarkets, chain stores, shopping centres, jewellery stores, coffee shops, nightclubs, etc.
