Company Advantages
· Innovative technology and superior materials are adopted in aluminium roller shutter doors manufacturing.
· The product is 100% qualified as it meets the strict requirements for the quality inspection.
· One of business plan is to delivering exceptional customer service.
Techniacal Data
This versatile door is well-suited for a wide array of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.
Max width | 7meters | Aluminum wall thickness | 1.0mm~1.5mm |
Max Height | 7meters | Operation | Manual or motorized |
Aluminum color | White, black |
Features
◆ Rust-proof: Constructed from aluminum, this roller shutter door is highly resistant to rust, unlike galvanized steel doors that are prone to corrosion.
◆ Noiseless: The door features special, long-lasting rubber inserts between the aluminum slats, ensuring quiet operation while reducing noise. The rubber also enhances smooth door movement, resulting in a noise level of approximately GB/TI6730, Rw=20dB.
◆ Lightweight: Compared to galvanized steel rolling shutters, this aluminum variant is lightweight, facilitating easy transportation and installation.
◆ Ventilation: The punched aluminum slats enable effective ventilation, making it suitable for areas that require airflow.
◆ Versatile Colors: Choose from a variety of colors, including natural, white, blue, green, cream, or any other RAL color through powder coating.
◆ Easy Installation: The door is designed for hassle-free installation, ensuring convenience.
Detail
◆ Curtain
Material: Single-skinned aluminum extruded slat with punched holes
Size: 80 mm width (pitch height)
Thickness: 1.2 mm / 1.0 mm
Color: Standard colors are white and cream, with the option for any RAL color through powder coating at an additional cost
◆ Bottom rail
Material: Aluminum
Equipped with a rubber weather seal
Maximum length: 7.2 meters
◆ Guide rail
Size: 9539mm (WidthDepth)
Thickness: 2.5 mm
Includes a brush strip
Maximum length: 7.2 meters
◆ Shaft / Axle
Material: Galvanized steel
Diameter: 5 inches (side motor), 6 inches, 8 inches, 10 inches
Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Item Description

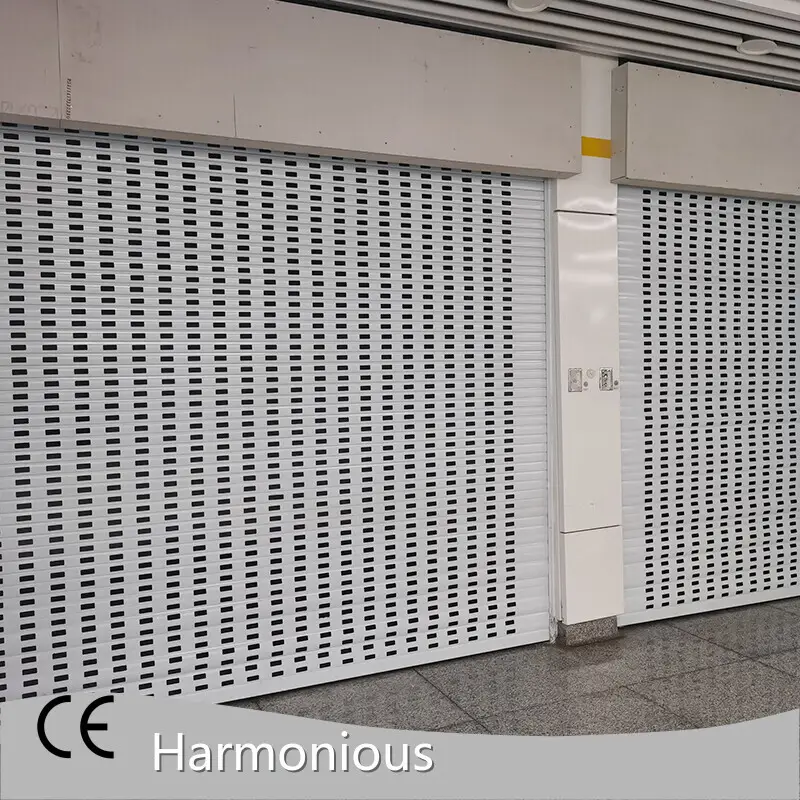

Operation way: Manual operation by hand or hook (push up & push down); Automatic operation with motor (remote controls, switch button) Optional: Shutter box / hood cover; Perforated slats and punched slats available if needed; Wicket door; Project photos: Images showcasing the punched aluminum rolling shutter door.
APPLICATIONS:
Company Features
· is a well-recognized company headquartered in China. We are engaged in manufacturing and exporting aluminium roller shutter doors.
· has a group of the experienced technology R&D team. has a number of imported production and processing equipment. The strong R&D team guarantees the high-quality products of Harmonious.
· Our commitment to quality underscores everything we do. We work tirelessly to ensure that we are listening to, meeting, and exceeding their expectations.
Product Details
Adhering to the concept of 'details and quality make achievement', we will work harder on the following details of aluminium roller shutter doors to make our products more advantageous.
