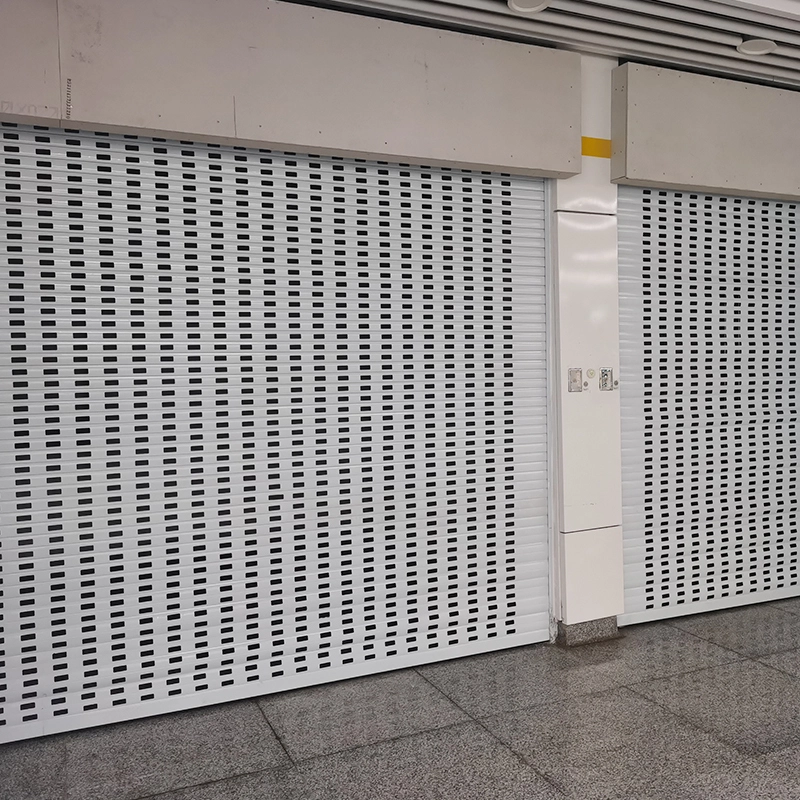

Punched hole aluminum roller shutter door | aluminum rolling shutter | model 77mm a19 1

Punched hole aluminum roller shutter door | aluminum rolling shutter | model 77mm a19 2

Punched hole aluminum roller shutter door | aluminum rolling shutter | model 77mm a19 3

Punched hole aluminum roller shutter door | aluminum rolling shutter | model 77mm a19

The aluminum rolling shutter door, specifically designed with punched holes, offers excellent security while maintaining an attractive appearance for retail units. In addition to providing enhanced security, this type of door also facilitates airflow and ventilation, which are crucial for various settings such as shops, retail stores, showrooms, garages, and more.

Max Width:

7meters

Max Height:

7meters

Aluminum Color:

White, black

Warranty:

5years

Inquiry

Write a Review

Techniacal Data

This versatile door is well-suited for a wide array of applications, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, and brand chain stores.

Max width	7meters	Aluminum wall thickness	1.0mm~1.5mm
Max Height	7meters	Operation	Manual or motorized
Aluminum color	White, black

Features

◆ Rust-proof: Constructed from aluminum, this roller shutter door is highly resistant to rust, unlike galvanized steel doors that are prone to corrosion.

◆ Noiseless: The door features special, long-lasting rubber inserts between the aluminum slats, ensuring quiet operation while reducing noise. The rubber also enhances smooth door movement, resulting in a noise level of approximately GB/TI6730, Rw=20dB.

◆ Lightweight: Compared to galvanized steel rolling shutters, this aluminum variant is lightweight, facilitating easy transportation and installation.

◆ Ventilation: The punched aluminum slats enable effective ventilation, making it suitable for areas that require airflow.

◆ Versatile Colors: Choose from a variety of colors, including natural, white, blue, green, cream, or any other RAL color through powder coating.

◆ Easy Installation: The door is designed for hassle-free installation, ensuring convenience.

Detail

◆ Curtain

Material: Single-skinned aluminum extruded slat with punched holes

Size: 80 mm width (pitch height)

Thickness: 1.2 mm / 1.0 mm

Color: Standard colors are white and cream, with the option for any RAL color through powder coating at an additional cost

◆ Bottom rail

Material: Aluminum

Equipped with a rubber weather seal

Maximum length: 7.2 meters

◆ Guide rail

Size: 9539mm (WidthDepth)

Thickness: 2.5 mm

Includes a brush strip

Maximum length: 7.2 meters

◆ Shaft / Axle

Material: Galvanized steel

Diameter: 5 inches (side motor), 6 inches, 8 inches, 10 inches

Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

Item Description

Operation way: Manual operation by hand or hook (push up & push down); Automatic operation with motor (remote controls, switch button) Optional: Shutter box / hood cover; Perforated slats and punched slats available if needed; Wicket door; Project photos: Images showcasing the punched aluminum rolling shutter door.

APPLICATIONS: Tailored to your specific size and dimension requirements, the aluminum roller shutter door is widely utilized in industrial, commercial, and residential applications, including: Front doors of villas; Reception counters; Commercial shop fronts; Garages; Domestic properties; And more
