Professional manufacturer of roller shutter materials

Factory Price Polycarbonate Shutter Door for Sale 1
Factory Price Polycarbonate Shutter Door for Sale 2
Factory Price Polycarbonate Shutter Door for Sale 3
Factory Price Polycarbonate Shutter Door for Sale 4
Factory Price Polycarbonate Shutter Door for Sale 1
Factory Price Polycarbonate Shutter Door for Sale 2
Factory Price Polycarbonate Shutter Door for Sale 3
Factory Price Polycarbonate Shutter Door for Sale 4

Factory Price Polycarbonate Shutter Door for Sale

Thickness:
1.2mm/1.5mm/1.8mm/2.0mm
Color:
Transparent
Max Width:
The maximum width for PC slats and aluminium bars is 10 metres
Max Height:
6 metres for electric, 4 metres for manual
Inquiry

Techniacal Data

The polycarbonate slat, which makes up the majority of the shutter, is made fully of better anti-UV PC material.

Model number  PC-150 Color Transparent in colour
Max Width The maximum width for PC slats and aluminium bars is 10 metres. Weight 5 kg per square metre
Maximum height  6 metres for electric, 4 metres for manual Packing Cardboard and foam or plywood boxes for packaging
Thickness 1.2mm/1.5mm/1.8mm/2.0mm Warranty 5years
2 (27)

Features

    Transparency: provides over 90 percent UV resistance and 80% UV protection against sunshine;

    Impact resistance: safer and more protective than glass. Transparency ranges from 80% to 90% depending on slat thickness;

    Vertical V2 and horizontal HB flame retardancy: four times more efficient than glass for preserving the interior space's temperature

    Eco-friendly: Polycarbonate-based components might be recycled and follow ROHS standards;

    Offer sound resistance of 3–4 DB, which is BETTER THAN GLASS, making a surface soundproof;

    The weight of polycarbonate blinds is around 5 kg/m2, which means they are weather-resistant to function effectively in ranges between -40 and 120 °C.

    Five years of warranty

Details

Rubber tube: It can be applied to protect individuals or items underneath a shutter by connecting it to a stop mechanism.

2. The bottom bar made of metal is available in white, black or natural.

3. The polycarbonate slat, which makes up the majority of the shutter, is made fully of better anti-UV PC material.

4. Other options includes an aluminium bar made of natural, white, or black metal.

5. A white plastic end cap suitable with metal connector bars.

6. A single metal component known as the highest adapter hook joins the top slat.

7. The top slat, which is constructed of galvanised steel, is the place where the polycarbonate curtain is attached.

8. Steel end clip: This tool is used to fasten the top slat

9. Top slat: made of galvanized steel, it is used to connect the top axle

未标题-1 (3)
sa

10. Guide Rail is made of aluminium and comes in white, black, or natural aluminium. It has a U-shaped form.

11. Attach the brush strip to the guide rail to ensure stillness.

12. A three to ten-foot diameter galvanised steel shaft.

The left plate, which is made of galvanised steel, is where the top axle is fastened.

14. The right plate, which is composed of galvanised steel, links the top axle to the engine.

15. There are two motor options for roller shutters: seated engines, which have a capacity range of 300 kg to 2000 kg, and tubular engines, which have a capacity range of 60 N to 300 N.

16. Change the basis

17. Remote management

A manual incline 18.

Packing and Transportation

Carton packing or plywood box packing

Sea transport or air transport or express

Item Description

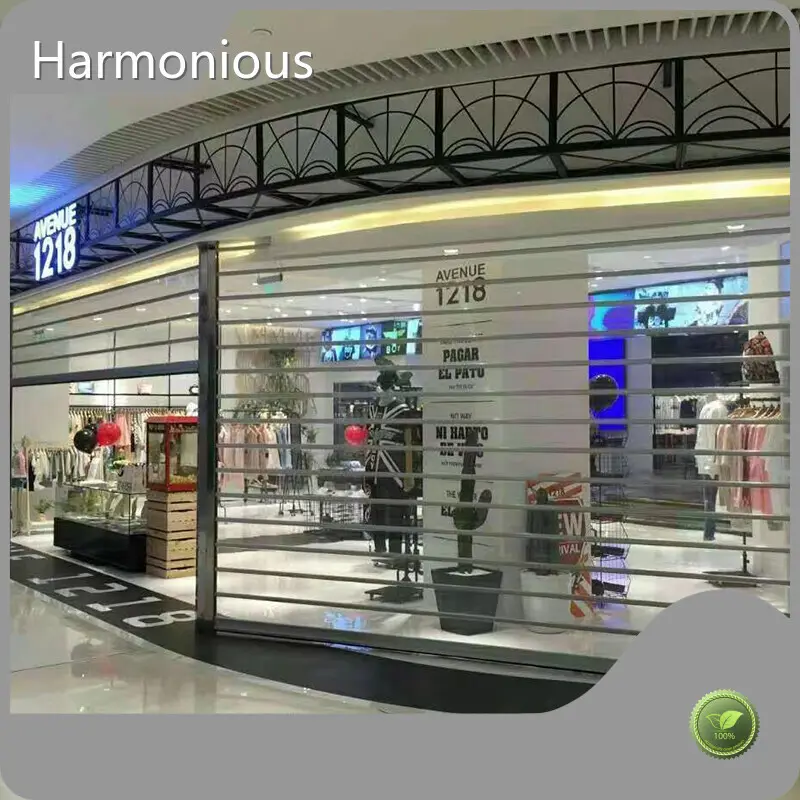

Since it can both prevent theft and constantly exhibit goods, chain and commercial enterprises typically utilise translucent polycarbonate roller shutter doors. It is also preferred for its features like easy installation, low cost, and minimal maintenance.

APPLICATIONS:   Stores like grocery stores, chain stores, shopping centres, jewellery shops, coffee shops, and nightclubs, among others.

未标题-2 (14)


Company Advantages

· adopts superior raw material which comes form polycarbonate shutter door.

· We further consolidate its quality by using advanced technology.

· This product is believed to have a wide range of applications due to the huge market demand.


Company Features

· Taking the dominance in polycarbonate shutter door industry is what has been doing for years.

· has core technologies and independent R&D capabilities for polycarbonate shutter door production.

· The company will continue to take a variety of steps to reduce its environmental influence. These steps mainly include two parts: reducing greenhouse gases emission and limiting pollution. Get info!


Application of the Product

The polycarbonate shutter door developed by is widely used in various fields.

always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
