Professional manufacturer of roller shutter materials

Cost-effective Sliding Folding 100mm~300mm Company 1
Cost-effective Sliding Folding 100mm~300mm Company 2
Cost-effective Sliding Folding 100mm~300mm Company 3
Cost-effective Sliding Folding 100mm~300mm Company 4
Cost-effective Sliding Folding 100mm~300mm Company 1
Cost-effective Sliding Folding 100mm~300mm Company 2
Cost-effective Sliding Folding 100mm~300mm Company 3
Cost-effective Sliding Folding 100mm~300mm Company 4

Cost-effective Sliding Folding 100mm~300mm Company

Max Height:
Manual 4.5m, motorized 6m
Aluminum Color:
White, black
Panel Thickness:
1.5mm~2.0mm
Single Panel Width:
100mm~300mm
Open Direction:
One side open or bifolding
Inquiry
Send your inquiry

Product details of the sliding folding


Product Introduction

High-performance raw materials make sliding folding be the perfect one. Since we have established a good quality management system to prevent any possible defects, the quality of the products is guaranteed. The product is priced low and has a broad market application prospect.

Techniacal Data

This versatile door finds applications in various settings, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, brand chain stores, and car beauty shops.

Max width 35meters  Single Panel width 100mm~300mm
Max Height Manual 4.5m, motorized 6m  PC panel thickness  1.5mm~2.0mm
Aluminum color White, black  Pocket width 8% of total width
PC color Transparent/white  Operation Manual or motorized
Open direction One side open or bifolding
1 (32)

Description 01

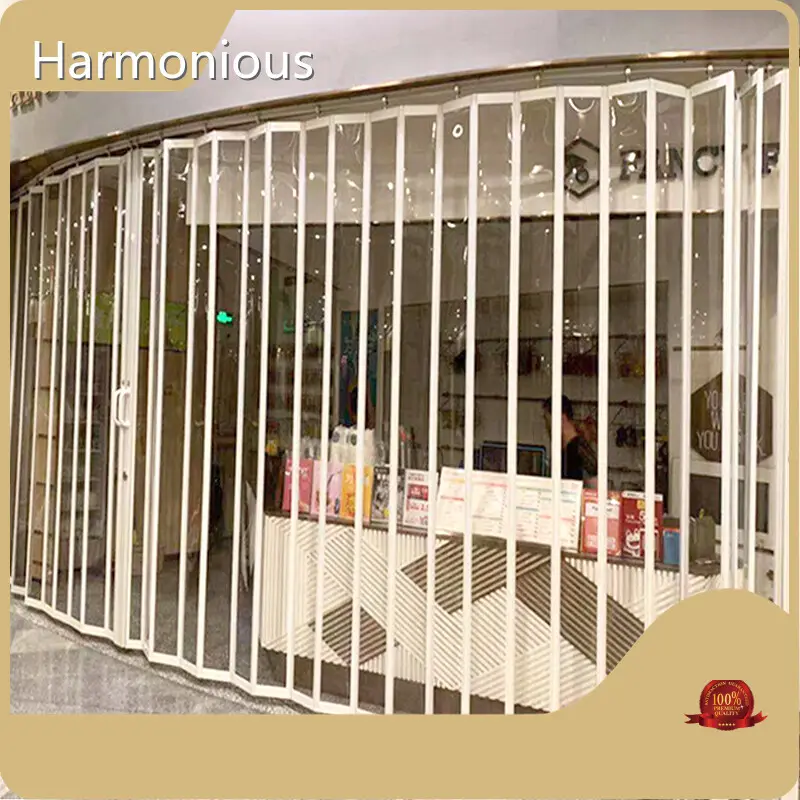

    The Transparent Folding Closure is a widely used solution in commercial centers and shopping malls. The new model, known as the Full Vision Folding Door, features reduced aluminum framing compared to traditional designs, providing customers with an enhanced view and offering more panel width options.

    This versatile door finds applications in various settings, including supermarkets, shopping malls, jewelry shops, coffee shops, club bars, brand chain stores, and car beauty shops.

    Panel options include a range of widths, starting from 100mm up to 300mm. The door offers multiple panel choices to suit different needs: 1.5~2.0mm polycarbonate panels fixed with aluminum frames for burglary-proofing, perforated aluminum panels with round or hexagon holes, and grill panels consisting of 10mm aluminum rods fixed with aluminum frames, providing both burglary-proofing functionality and an 80% view. The door can be operated manually or with a motorized system.

Description 02

    The track system features a 25mm35mm aluminum track for straight door openings, which can also be used for curve openings with pre-formation using a bending machine. Additionally, a 25mm30mm aluminum track is specifically designed for curve openings and can be easily bent for straight openings as well.

    The Polycarbonate Folding Sliding Door has a maximum width of 35 meters, while the height reaches 4.5 meters for manual operation or 6.0 meters for motorized operation.

    Each folding door is equipped with a lock set and two keys, enabling access from both sides. Furthermore, one set of ground bolts and a dust cover are provided for every 1-meter width of the door.

    The aluminum finish is available in powder coating or anodized options. The standard colors offered are natural aluminum, white, and black, but customization is possible upon providing color samples.

    The stacking pocket size typically amounts to approximately 8% of the total door width, with precise measurements determined based on the provided data.

3 (24)

Item Description

Motor specifications include various voltage/frequency options, such as single phase 220V/50Hz, three phase 380V/50Hz, and 110V/60Hz. Multiple remote controls are included, and lifting forces range from 300KG to 2000KG. Optional features comprise a backup battery, alarm system, stopping device, and cellphone control.

We offer a generous 5-year warranty for the Full Vision Shop Security Folding Door, and in case of any damaged panels during transport, we are able to replace them.

For shipment and delivery, LCL orders are packed securely in plywood boxes, while FCL orders utilize foam and carton packaging.

未标题-2 (17)


Company Feature

• With the joint efforts of all employees, our products are sold well in major cities in China and also exported to dozens of countries and regions such as the Middle East, South Asia, Australia, Eastern Europe, North America and South America.
• We promise choosing is equal to choosing quality and efficient services.
• Since the establishment in has been well-managed and is now beginning to take shape.
• The geographical advantages and open traffic are conducive to the circulation and transportation of br /> If you have any questions, you can consult Please enjoy your purchasing!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
