Aluminum Perforated Folding Grilles Doors| Commercial Side Sliding Closures
The Full vision shop security folding door is widely used in commercial centers and shopping malls, it is made of polycarbonate panel and aluminum sections.
Item Description

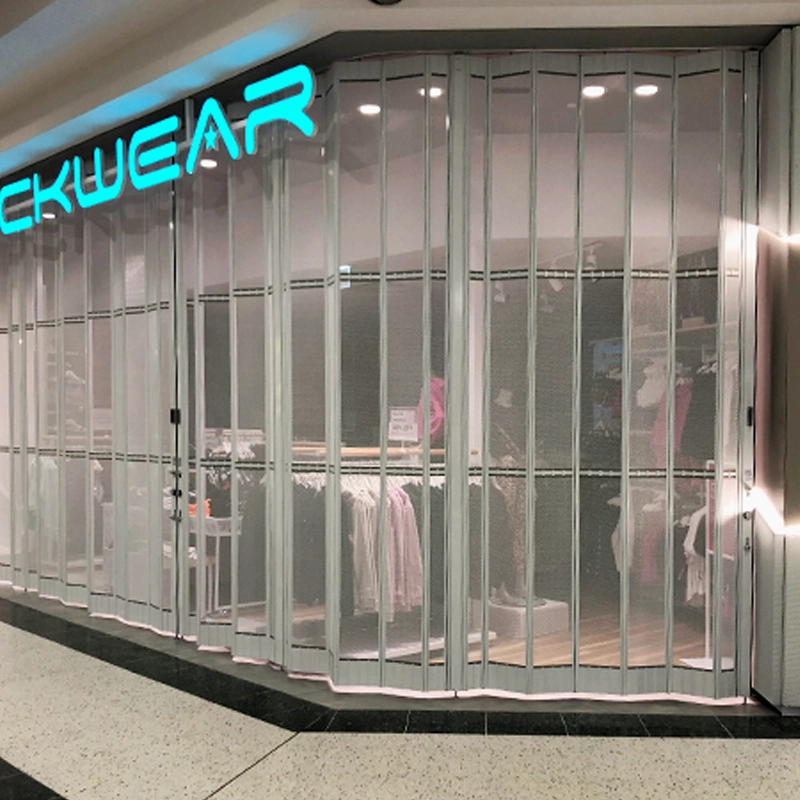

The Aluminum Perforated Folding grilles is widely used in commercial centers and shopping malls, this door is
assembled with aluminum perforated panel, which can provide security for your shop and adequate airflow, by
customizing the curve rail, it can be compatible to any shape of door openings.
APPLICATIONS: Supermarket, shopping mall, jewelry shop, coffee shop, club bar, brand chain stores
Product Details
◆ Panel Options
1. Single panel width: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, 300mm
2. Grill panel: 10mm aluminum rod fixed with high quality aluminum frame to provide security and airflow
Operation: manual operation or motorized operation
◆ Track System
1. 35mm*45mm aluminum track for straight door opening, it can also be used for curve opening but need
pre-formation by bending machine
2. 35mm*55mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.
◆ Maximum size
Maximum width of Polycarbonate Folding Sliding Door is 35meter
Maximum height is 4.5meter for manual operation door
Maximum height is 6.0meter for motorized operation door
Detail Parameters
◆ Lock And Bolts
1. Each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.
2. Gound bolts and dust cover will be provided 1set every 1meter width.
◆ Aluminum Color
The finish of aluminum is powder coating or anodize. the normal color is natural aluminum, white and black. If you need other color, please send color samples, and we will customize color for you
◆ Stacking Pocket Size
The pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to your data.
◆ Motor Specification
1. Motor Voltage / Frequency: single phase 220V/50Hz, three phase 2. 380V/50Hz, 110V/60Hz is also available
2. Motor remote controls: 2pcs or more
3. Motor lifting Force: 300KG, 600KG, 800KG, 1000KG, 1500KG, 2000KG
4. Optional: backup battery, alarm system, stopping device, cellphone control
Packaging And Transportation
We have more folding sliding door models, clear vision shopping mall accordion door, full vision commercial accordion door, Side folding Grill Door, clear view shop accordion door, transparent store front accordion door, shopping mall folding closure, transparent shop accordion folding doors etc.
Similar Products
We have more folding sliding door models, clear vision shopping mall accordion door, full vision commercial accordion door, Side folding Grill Door, clear view shop accordion door, transparent store front accordion door, shopping mall folding closure, transparent shop accordion folding doors, store front side folding closure, shop folding sliding security grilles, if you need more options, please check our other products.
WARRANTY: 5 years warranty for folding sliding security grilles we can replace the damaged panel during transport
Shipment and Delivery: Plywood box packing for LCL, foam and carton packing for FCL
