Product details of the transparent polycarbonate roller shutter
Product Introduction
transparent polycarbonate roller shutter has attracted much attention for its excellent design and has wide development prospects. The product has properties of long service, excellent and stable performance. All our staff set strict demands on themselves to create satisfying transparent polycarbonate roller shutter for you.
Techniacal Data
This versatile solution ensures security and enhances visibility, making it an ideal option for businesses seeking efficient and affordable door solutions.
Model number | PC-305 | Color | Transparent |
Max widths | PC slat and aluminium bar - 10m | Weight | 5 KG/sqm |
Max height | Manual - 4m, Electric - 6m | Packaging | Plywood box or cardboard and foam |
Thickness | 1.5mm | Warranty | 5 years |
Features
◆ Transparency: Provides 80% UV protection and over 90% UV resistance, ensuring optimal sunlight control.
◆ Impact Resistance: Offers enhanced safety compared to glass, with transparency varying based on slat thickness (ranging from 80% to 90%).
◆ Heat Dissipation: Four times more effective than glass in maintaining interior temperature.
◆ Flame Retardancy: Meets vertical V2 and horizontal HB flame retardancy standards.
◆ Eco-Friendly: Made of recyclable polycarbonate materials adhering to ROHS regulations.
◆ Soundproof: Outperforms glass with sound resistance of 3-4 dB.
◆ Lightweight: Weighing approximately 5 kg/m2, ensuring easy handling and installation.
◆ Weather-Resistant: Performs reliably within a wide temperature range of -40 to 120°C.
◆ Warranty: Backed by a 5-year warranty for added assurance and peace of mind.
Details
1.Rubber Tube: Safeguard people or items beneath the shutter using a secure stopping mechanism.
2.Bottom Bar: Choose from white, black, or natural aluminum options for durability and aesthetics.
3.Polycarbonate Slat: The main component, constructed with premium anti-UV PC material, ensures longevity.
4.Aluminum Bar: Available in natural, white, or black, providing additional customization choices.
5.White Plastic End Cap: Compatible with aluminum connector bars, ensuring a seamless finish.
6.Top Adapter Hook: Connects the top slat with a single metal component for structural integrity.
7.Polycarbonate Curtain: Attached to the galvanized steel top slat, ensuring durability.
8.Steel End Clip: Secures the galvanized steel components in place effectively.
9.Galvanized Steel Top Slat: Provides strength and stability to the overall structure.
10.Guide Rail: Made of aluminum, in natural, black, or white options, featuring a U-shaped design.
11.Brush Strip: Attach to the guide rail for enhanced stability and reduced noise during operation.
12.Galvanized Steel Shaft: With a diameter ranging from three to ten feet, provides robust support.
13.Left Plate: Galvanized steel plate to secure the top axle.
14.Right Plate: Galvanized steel plate connecting the top axle to the motor.
15.Motor Options: Choose from tubular motors (60 N to 300 N) or seated motors (300 kg to 2000 kg).
16.Adjustable Base: Allows for customization to suit specific requirements.
17.Remote Control: Effortlessly operate the roller shutter system from a distance.
18.Manual Incline: Option for manual operation, offering flexibility in controlling the system.
Our Roller Shutter System offers a comprehensive range of features and options, providing security, durability, and ease of use. With various customization choices and reliable components, it is an ideal solution for commercial and industrial applications.
Packing and Transportation
Carton packing or plywood box packing
Sea transport or air transport or express
Item Description

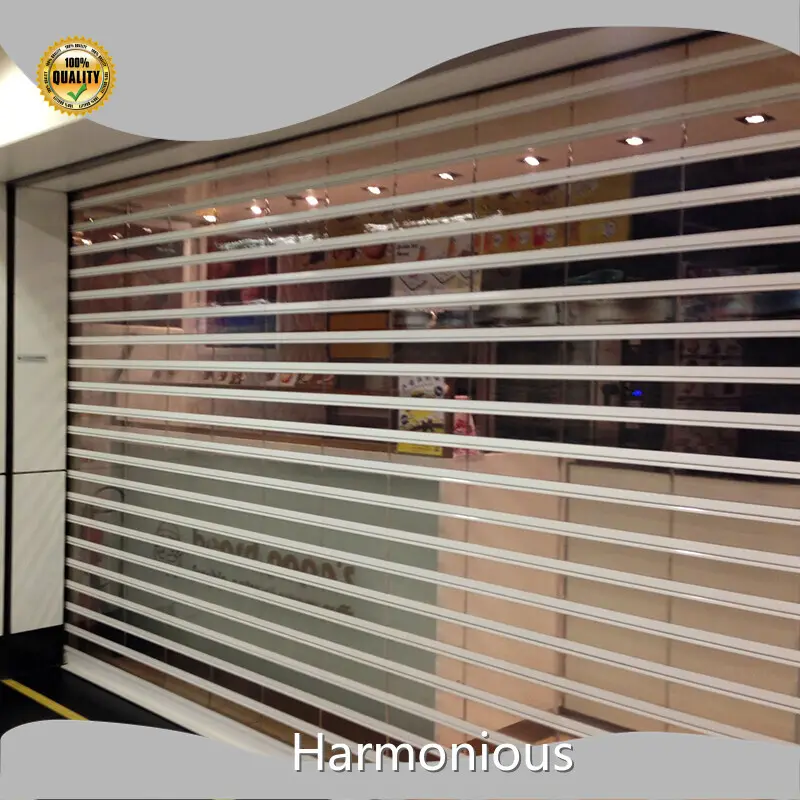

The clear polycarbonate roller shutter door is a preferred choice for chain and commercial establishments. It serves a dual purpose by deterring theft and providing continuous merchandise display. With its simple installation, cost-effectiveness, and minimal maintenance requirements, it offers numerous benefits. This versatile solution ensures security and enhances visibility, making it an ideal option for businesses seeking efficient and affordable door solutions.
APPLICATIONS: Our product finds versatile applications in various settings, including supermarkets, chain stores, shopping centers, jewelry stores, coffee shops, nightclubs, and more.
Company Feature
• has gone through years of development. So far, our production and processing level ranks top in the industry.
• provides competitive solutions and services based on customer demand,
• is located in a unique geographical position with pleasant climate and rich resources. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• Our company's products are now available throughout the country and we also export them to the Middle East, Europe, America, Africa and other countries and regions.
If you are interested, please contact customer service staff for consultation!
