Transparent Polycarbonate Roller Shutter Plywood Box Or Cardboard and Foam Company

Thickness:

3.0mm

Color:

Transparent

Max Height:

8meter

Packing:

Plywood box or cardboard and foam

Inquiry

Product details of the transparent polycarbonate roller shutter

Quick Overview

transparent polycarbonate roller shutter is fabricated selecting high quality raw materials. Timely corrective measures have been taken when spotting defects, ensuring the consistently high quality of the product. will offer video to explain how to install and use transparent polycarbonate roller shutter.

Product Information

Compared with other products in the same industry, transparent polycarbonate roller shutter has the following characteristics.

Techniacal Data

The top slat is stabilised by the steel end clip, which is constructed of galvanised steel.

Model No.	PC-360	Color	Transparent
Max Width	PC slat and aluminium beam maximum width are 10 metres	Weight	8 KG/sqm in weight
Max height	8meter	Packaging	Plywood box or cardboard and foam
Thickness	3.0mm	Warranty	5years

Features

◆ UV protection: gives 80% UV protection from sunshine;

◆ Depending on the slat thickness, transparency is over 90%.

Impact resistance: More safe and protective than glass.

◆ Heat dissipation: Glass is only four times as effective at regulating the temperature of an interior area.

◆ Flame retardancy: horizontal HB and vertical V2

◆ Eco-friendly: ROHS-compliant and recyclable polycarbonate materials;

◆ Soundproof: offer 3–4 DB of sound resistance, which is BETTER THAN GLASS;

◆ Compact: Polycarbonate drapes weigh roughly 5 kg/m2;

◆ Weather-resistant: works well in temperatures between -40 and 120 °C;

◆ Warranty: 5 years warranty

Details

Rubber tube can be attached to a stopping mechanism to protect people or items underneath a shutter.

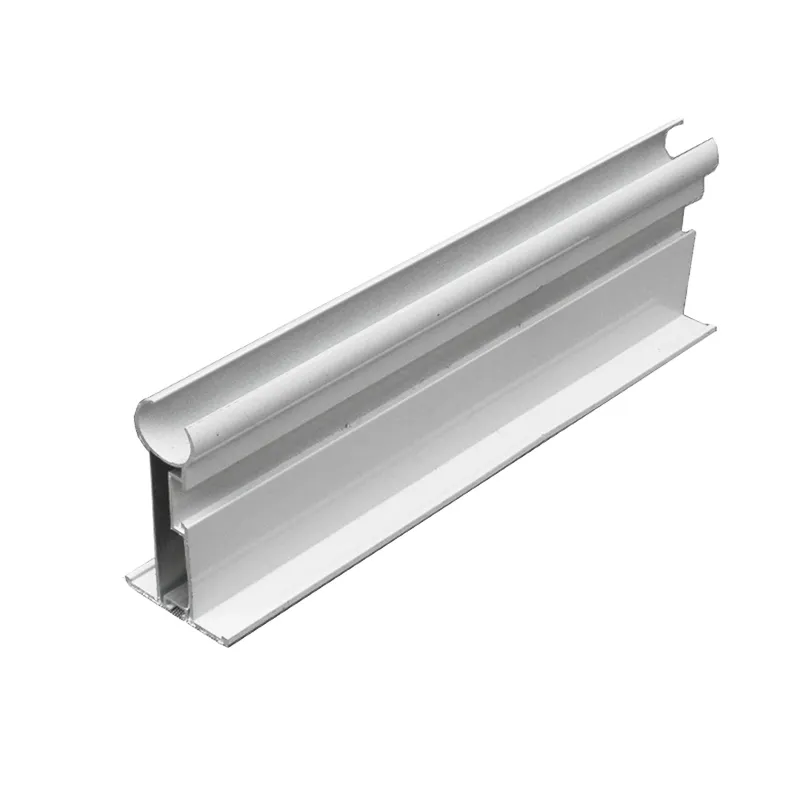

2. Available in white or raw metal hue, the bottom bar is made of stainless steel or aluminium.

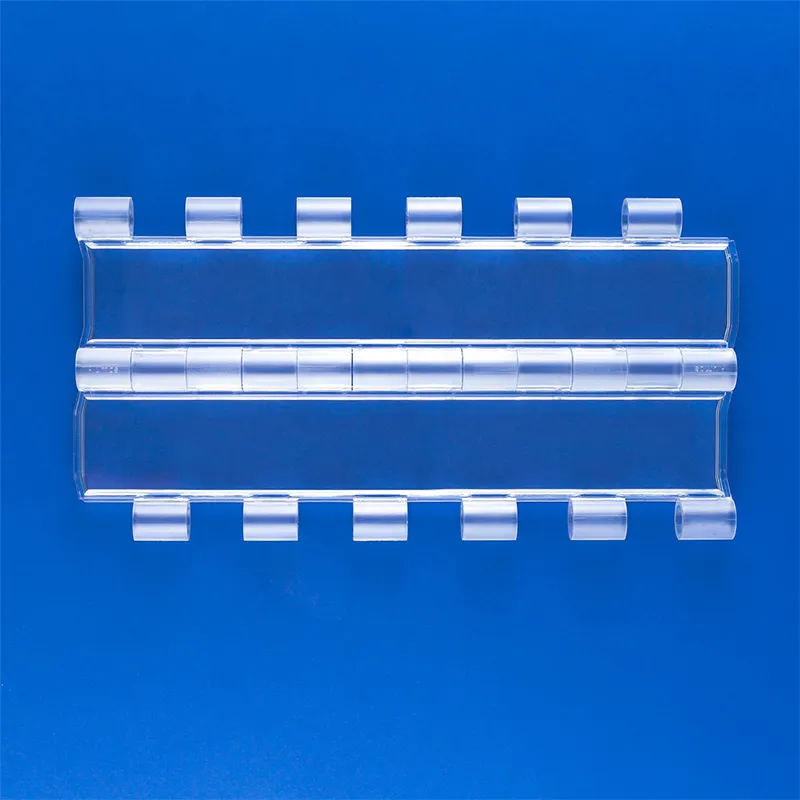

3. The shutter's main component, the polycarbonate slat, is made completely of premium PC material.

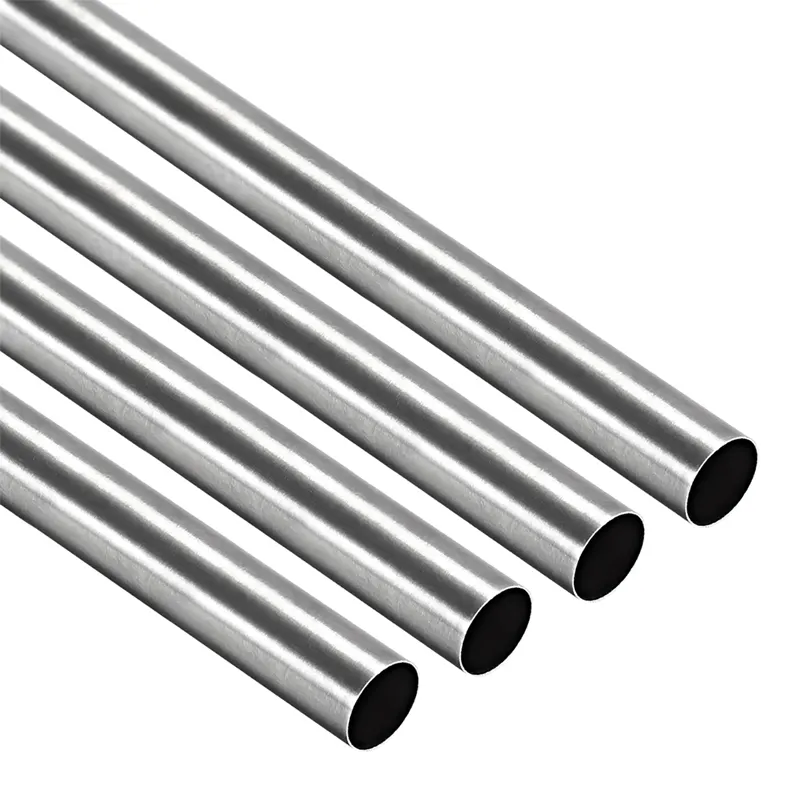

4. Stainless steel pipes of 9.5mm, 12.8mm, or 16mm diameters that are made of stainless steel 201 or 306

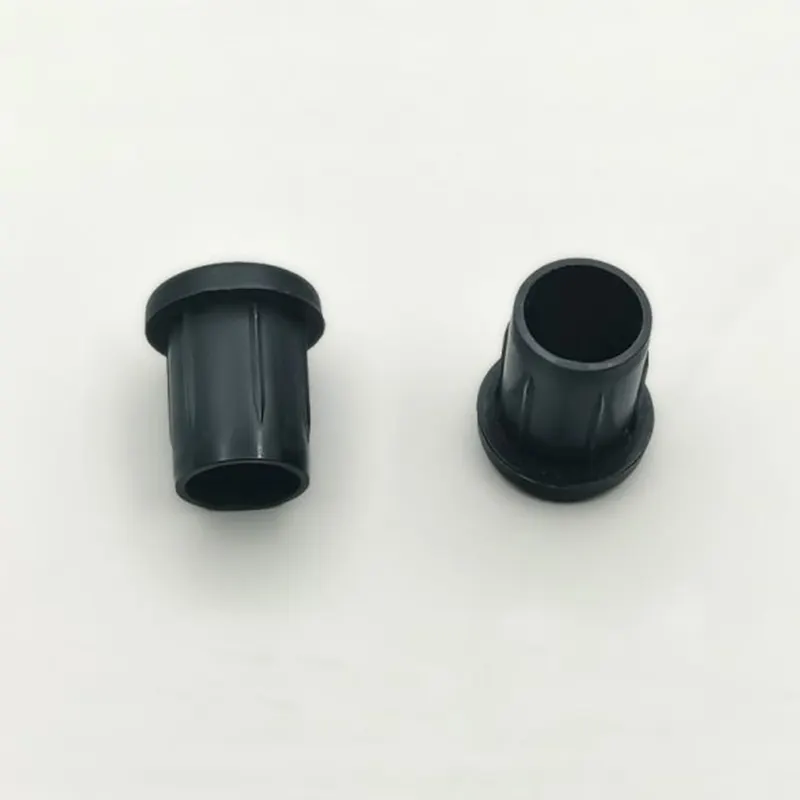

5. A black end cap made of plastic or rubber that is 12.8mm, 16mm, or 12.8mm in diameter.

6. Top adapter hook: Connecting the top slat, it is constructed of aluminium or polycarbonate and is spaced every one metre by three to four pieces.

7. The galvanised steel top slat joins the bottom slat. 8. The top slat is stabilised by the steel end clip, which is constructed of galvanised steel.

9. The top slat joins the top axle and is made of galvanised steel.

10. An aluminium or stainless steel U-shaped guide rail in grades 201 or 304

11.To keep the guide rail silent, fasten the brush strip to it.

12. A shaft made of galvanised steel with a diameter of three to ten feet.

The left plate, which is made of galvanised steel, is used to fasten the top axle.

14. To connect the top axle to the motor, the right plate, made of galvanised steel, is utilised.15. Seating roller shutter motors are an option, and their weight capacities range from 300 KG to 2000 KG. 1. Two tubular motors with a capacity are housed inside the shaft.

16. controller box

17. Remote controller

18. Manual chain lift

Packing and Transportation

Carton packing or plywood box packing

Sea transport or air transport or express

Item Description

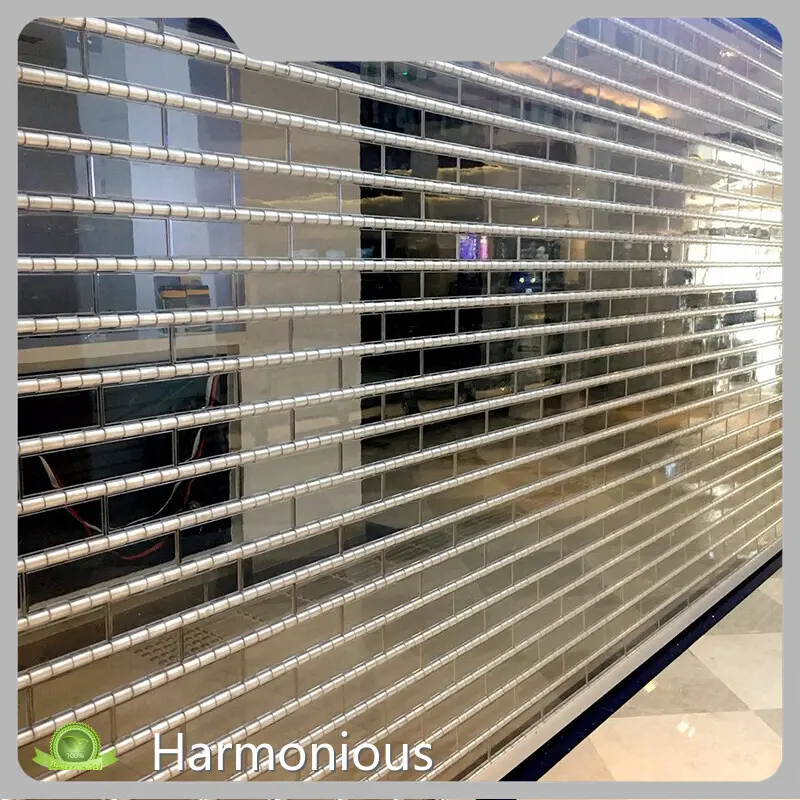

Transparent PC polycarbonate roller shutters are frequently employed in retail establishments and brand stores because they may repel intruders while constantly showing commodities. It is also favoured for its advantages like easy installation, low cost, and minimal maintenance.

APPLICATIONS: Supermarkets, chain stores, malls, jewellers, coffee shops, nightclubs, etc.
