Fast Shutter Door Best Brand PC-100customized

Thickness:
1.2mm/1.5mm/1.8mm/2.0mm
Max Width:
PC slat, aluminium bar, maximum width 8 metres
Max Height:
6meters
Packing:
cardboard and foam or plywood box
Inquiry

Item Description

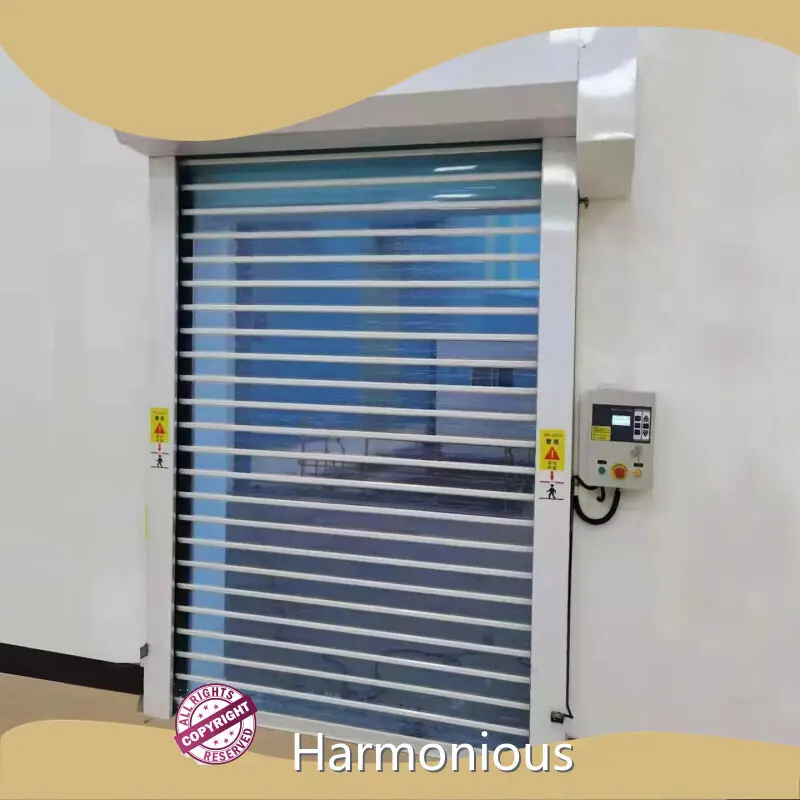

The fast rolling door is an innovative high-speed door equipped with a partition function. Its sleek and attractive design is achieved through precise cutting by a large laser machine. The door's control system utilizes an asynchronous motor and frequency conversion device, while the limit system integrates multi-turn absolute encoder technology for accurate position tracking.

To facilitate user interaction, a bright blue screen LCD with a user-friendly Chinese interface is employed as a man-machine dialogue window. This setup guarantees seamless and trouble-free operation, allowing for over 150,000 cycles annually with an average of fewer than 500 cycles per day, as depicted in the figure. Moreover, the door's standard design ensures easy operation, low maintenance costs, and enhanced durability, making it an ideal choice for various applications.

APPLICATIONS:  Automotive, food and medicine, electrical equipment, workshops, printing, textiles, supermarkets, machinery manufacturing

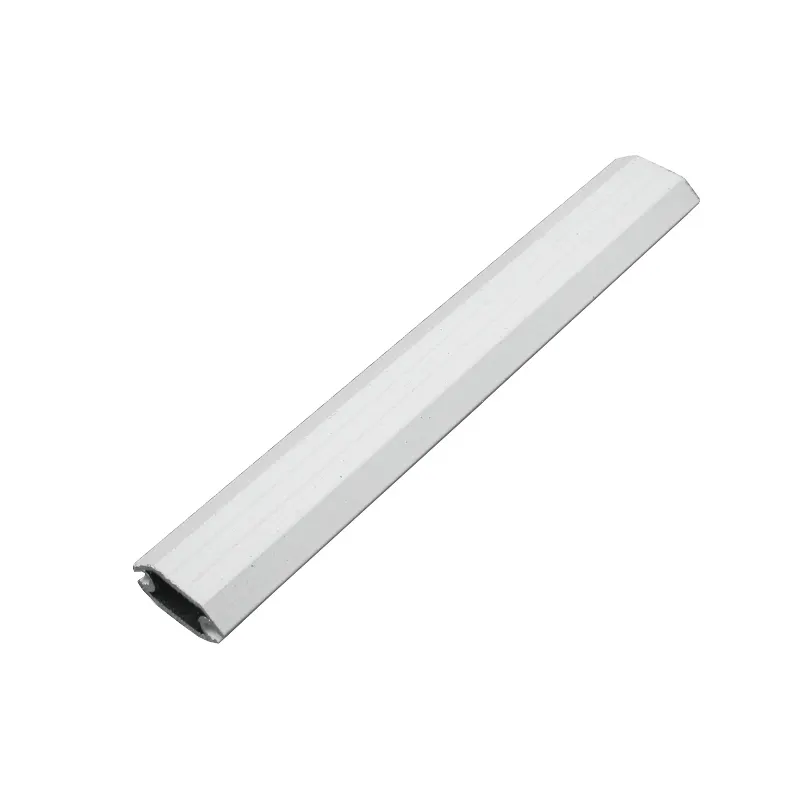

aluminum-bar1 (2)

Specifications

High SpeedRoller Shutter Configuration List

  Item name specification qty unit
1 Motor system Special motor "BKJ" AC variable frequency motor, motor power0.75kw-2.2kw 1 set
    5 inch roller Q235 steel pipe 1 pc
2 Control system Grande LCD text human-machine interface, intelligent control system / IPM (Infineon inverter module imported from Germany) / CPU Germany (TI DSP) debugging (220v working power supply) to ensure more than 150,000 operations per year, 1 set
3 curtain Polycarbonate slat assembled with aluminum connecting slat and aluminum bottom bar 1 set
4 limiter German full-scale multi-turn absolute value encoder (using the program to record the number of turns) 1 pc
5 open method Airbag. Standard one-button button box with emergency stop switch. 2 pcs
7 safety protection Safety photoelectric (Jitek) (people, vehicles and goods will block the infrared beam when passing by, realize the motor reversal, and effectively protect the safety of people, vehicles and doors 1 set
8 Door frame and guide rail cold-rolled galvanized steel plate: one-piece door cover (1.3mm) and door frame (2.0mm), anti-ultraviolet electrostatic spray guide rails are equipped with nylon super-elastic brushes on both sides, dust-proof and mosquito-proof Size 120*120mm 1 set
9 airtight Airtight at the bottom of aluminum alloy, closely attached to the ground 1 set
10 Power supply 220v/13A single-phase/50HZ/60HZ, IP54 control box, in line with national electrical safety standards. 1 set

Packaging And Transportation

未标题-4 (2)

◇ Carton packing or plywood box packing

◇ Sea transport or air transport or express
