PC150 | Transparent Rolling Door Slat | Clear View Polycarbonate Shutter Panel

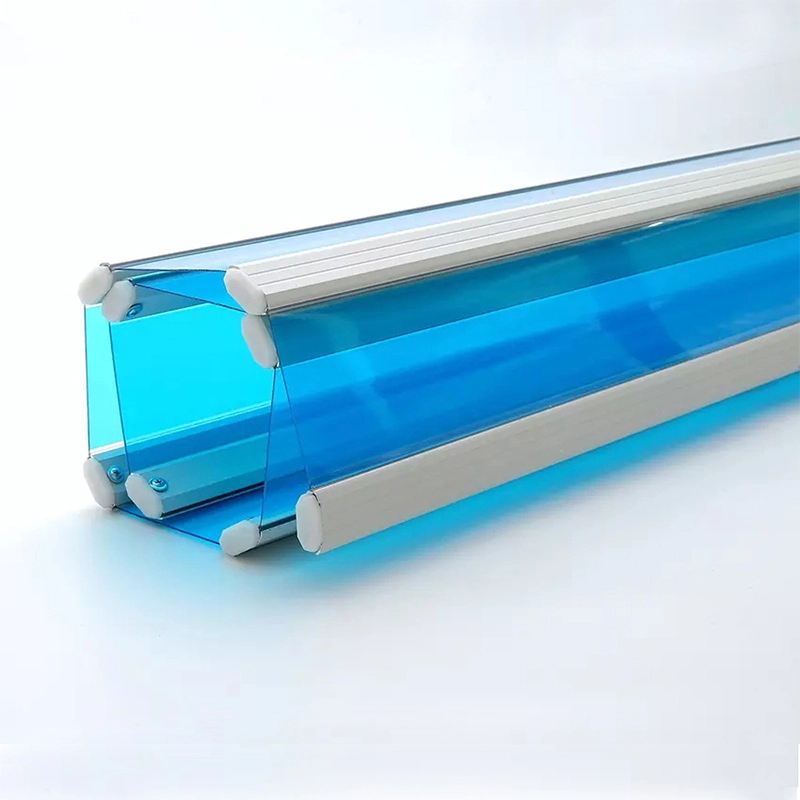

The transparent roller shutter's main component, the polycarbonate shutter slat, is produced entirely of high-quality polycarbonate raw materials. Polycarbonate shutter slats, steel or aluminum pipes, and other components are assembled to create a complete polycarbonate roller shutter curtain.
Techniacal Data
The transparent roller shutter's main component, the polycarbonate shutter slat, is produced entirely of high-quality polycarbonate raw materials.
|
Item No. |
Length(m) |
Weight(kg) |
Center thickness(mm) |
Side thickness(mm) |
|
PC-100 |
100 |
25 |
1.2/1.5/1.8/2.0 |
4.5-5.0 |
|
PC-120 |
100 |
30 |
1.2/1.5 |
4.5-5.0 |
|
PC-150 |
100 |
38 |
1.2/1.5 |
4.5-5.0 |
|
PC-200 |
100 |
50 |
1.2 |
5.2 |
|
PC-250 |
100 |
62 |
1.2 |
5.2 |
|
PC-300 |
100 |
75 |
1.2 |
5.2 |
Features
◆ Anti-UV: gives 80% UV protection against sunlight;
◆ Transparency: 80%–90% transparency; the transparency varies with the thickness of the slat.
◆ Impact resistance: far better than glass at ensuring security and safety
◆ Fire retardant: horizontal HB/vertical V2
◆ Heat rejection: simple to manage the temperature of the interior, 4 times better than glass
◆ The benefits of using polycarbonate curtains include:
◆ advertising effect: show off the merchandise even when the store is closed;
Product Details
◆ Eco-friendliness: the material can be recycled and complies with ROHS;
◆ Soundproofness: 3–4 DB better than glass;
◆ Lightweightness: the weight of polycarbonate curtains is approximately 5 kg/sqm;
◆ Deformation resistance: they function well in the temperature range of -40 to 120°C; and
◆ Warranty: 5 years warranty
Packing and Transportation
Carton packing or pallet packing
Sea transport or air transport or express
Item Description
The transparent roller shutter's main component, the polycarbonate shutter slat, is produced entirely of high-quality polycarbonate raw materials. Polycarbonate shutter slats, steel or aluminum pipes, and other components are assembled to create a complete polycarbonate roller shutter curtain.
APPLICATIONS: Commercial Clear PC Roller Shutter Doors, Shop Front Polycarbonate Rolling Doors, and Transparent Folding Sliding Doors
